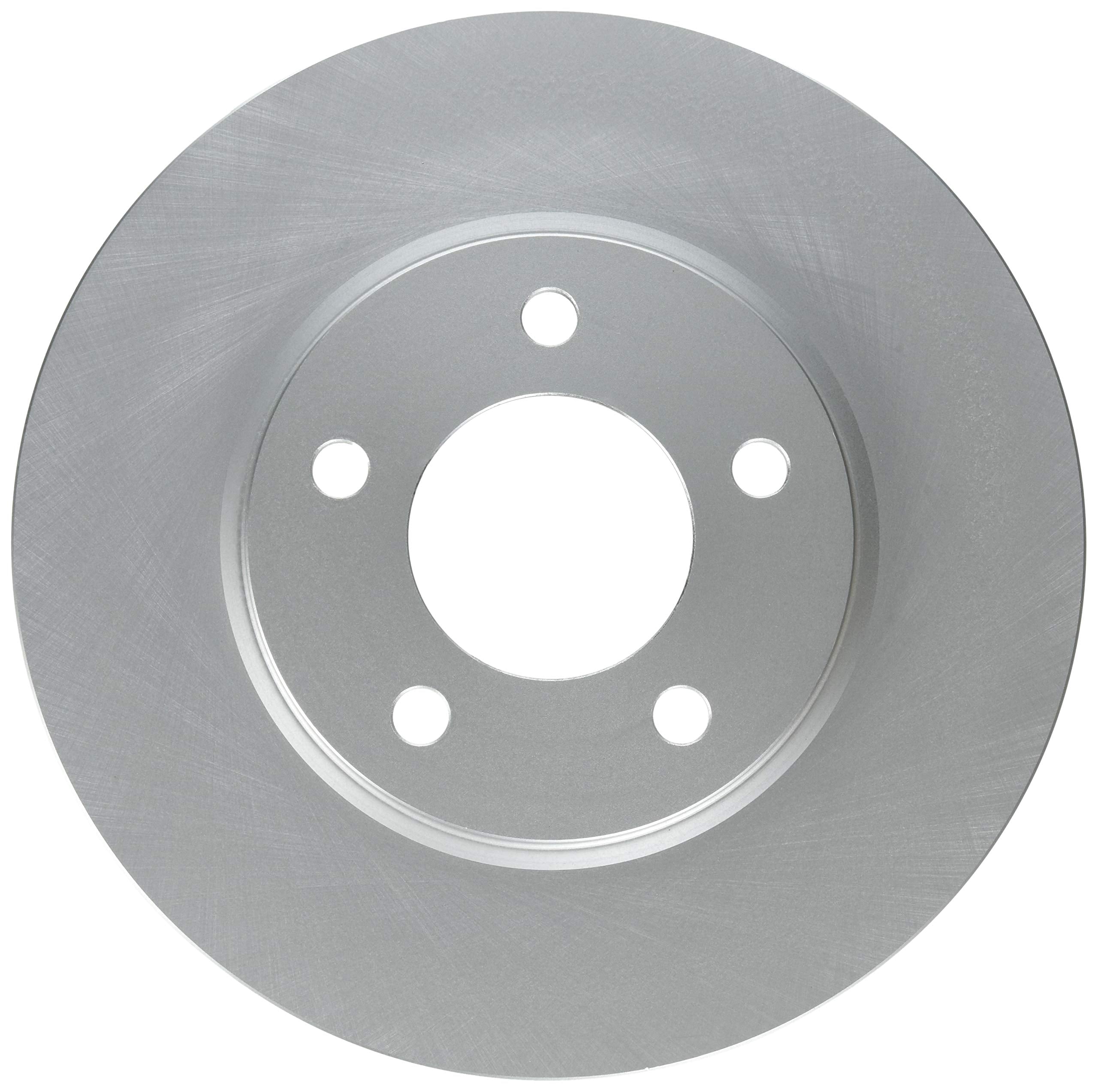

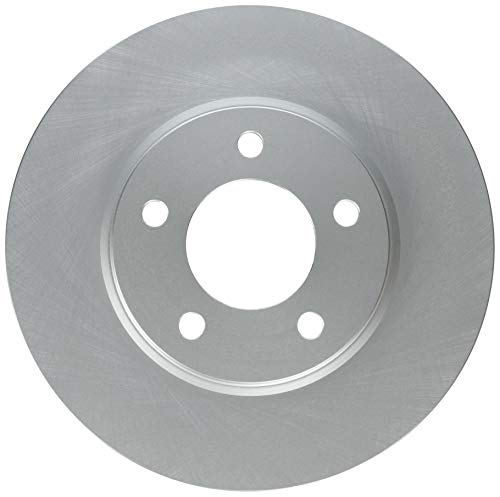

Raybestos 780049FZN Element3 Grey Fusion Coated Vented Front Disc Brake Rotor

The Raybestos 780049FZN Element3 Coated Brake Rotor is a front vented disc brake rotor engineered with Rust Prevention Technology for superior corrosion resistance and long-term braking performance. Developed from OE samples and manufactured using G3000-qualified material, this rotor is designed to match or exceed original equipment form, fit, and function.

Grey Fusion 4.0 Corrosion Protection:

Unlike standard rotors, the Element3 is coated on its entire surface — including the internal cooling vanes — with Raybestos' proprietary Grey Fusion 4.0 coating. This full-surface treatment resists corrosion and significantly delays rust-induced brake performance issues. The coating has been validated through more than three years of field testing and 300+ hours of salt spray testing, making it an ideal choice for vehicles in rust-prone Rust Belt and coastal environments.

Key Features:

• Full Grey Fusion 4.0 coating — covers entire rotor surface including cooling vanes for maximum corrosion resistance
• Vented rotor design — promotes optimal airflow and heat dissipation during braking
• G3000-qualified iron — OE-matched material for consistent performance and durability
• Tight lateral runout — 0.004 inches or less to minimize pedal pulsation and brake noise
• Minimal thickness variation — less than 0.0005 inches for smooth, fade-free braking
• Non-directional ground finish — ready to install straight out of the box, no bedding required
• Outside diameter: 11.060 in | Nominal thickness: 1.100 in | Discard thickness: 0.996 in
• Center hole diameter: 2.890 in | Bolt circle diameter: 4.500 in | 5-lug pattern

Sold individually (1 pack). For optimal brake system performance, it is recommended to replace brake pads when installing new rotors.
