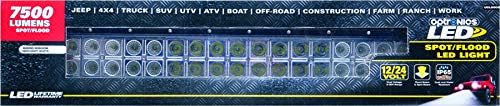

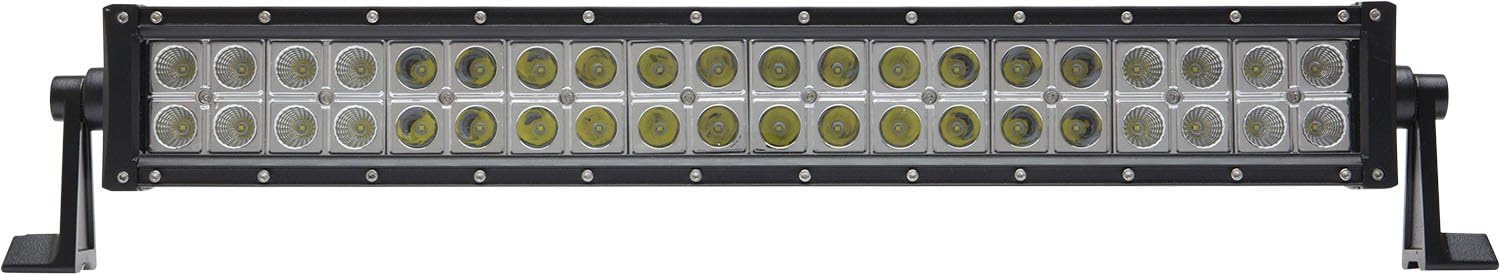

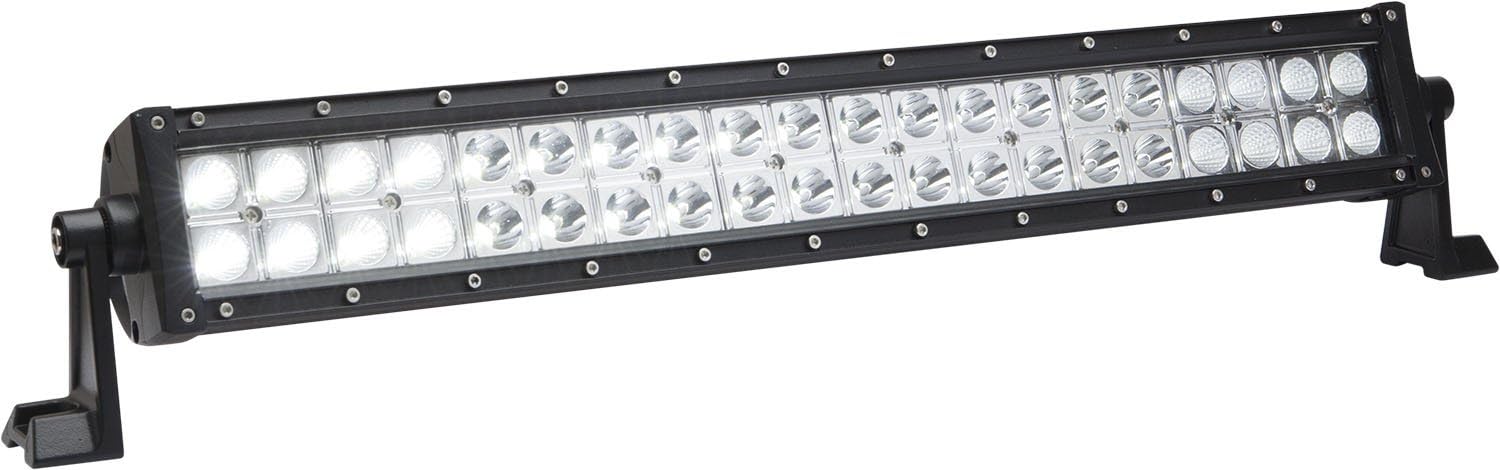

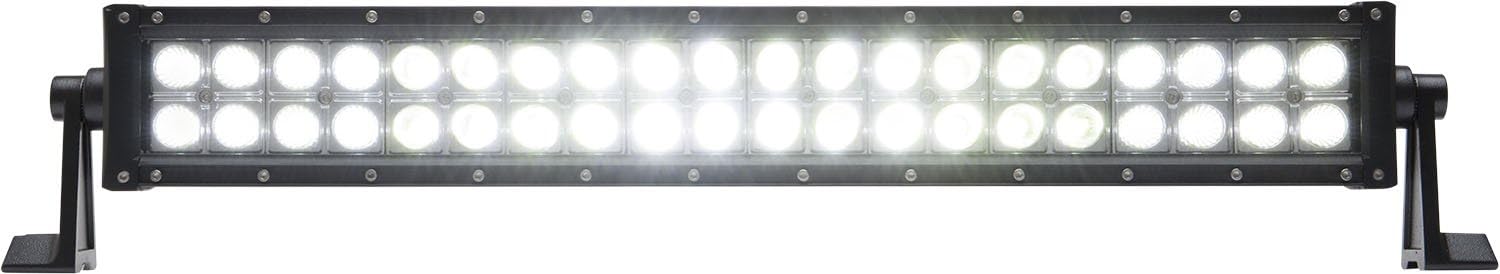

Optronics UCL20CB 22" LED Light Bar Combo Spot/Flood Beam 40 Diode 120W

The Optronics UCL20CB is a high-performance 22-inch LED light bar designed for off-road, utility, marine, RV, and powersports applications. Featuring dual rows of 20 high-intensity LEDs (40 diodes total), this light bar delivers an impressive 7,500 raw lumens and 4,521 effective lumens with a bright 6000K daylight white color temperature.

Key Features:

• Combination spot and flood beam pattern for optimal visibility both at distance and to the sides
• 40 premium LEDs with 200,000-hour lifespan backed by lifetime warranty
• Heavy-duty die-cast aluminum housing with black powder-coat finish for rust-proof durability
• Polycarbonate lens provides superior impact resistance and clarity
• IP65-rated for complete dust and water resistance
• Dual voltage compatibility: works with both 12V DC and 24V DC systems (9-30V range)
• 120W power consumption at 6.8-9.8 amps depending on voltage
• Channeled heat sink fins on housing for optimal heat dissipation and LED performance
• Surface-mount technology (SMT) LED circuit board construction for superior shock and vibration resistance

Complete Installation Kit Included:

• Mounting brackets with 23-3/4" center-to-center hole spacing
• 16-gauge, 14" lead and ground wires (hardwired connection, switch not included)
• All necessary mounting hardware

The combination beam pattern cannot be operated separately, providing simultaneous spot illumination for long-distance visibility and flood lighting for wide peripheral coverage. Perfect for trucks, trailers, ATVs, UTVs, boats, agricultural equipment, and work vehicles requiring professional-grade auxiliary lighting.
