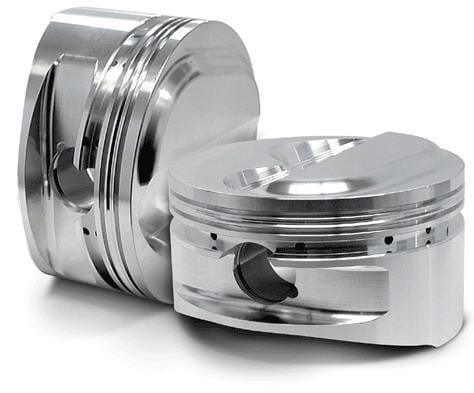

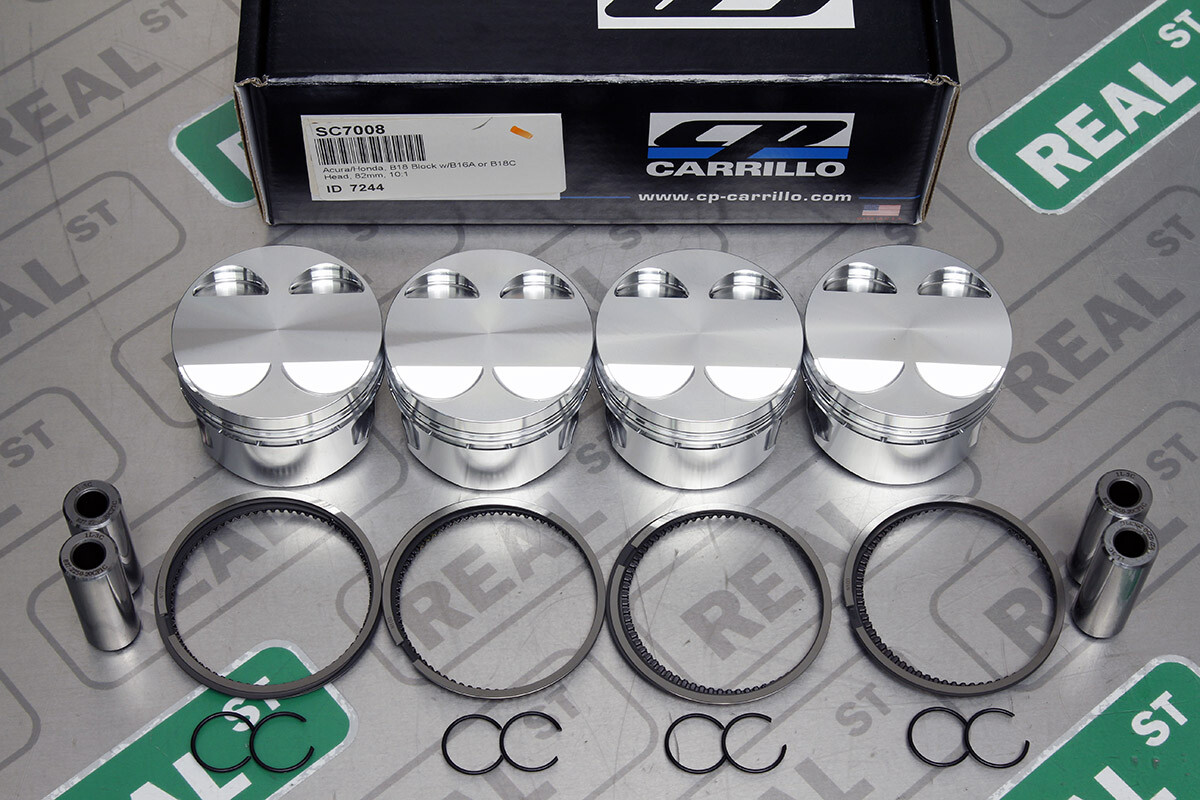

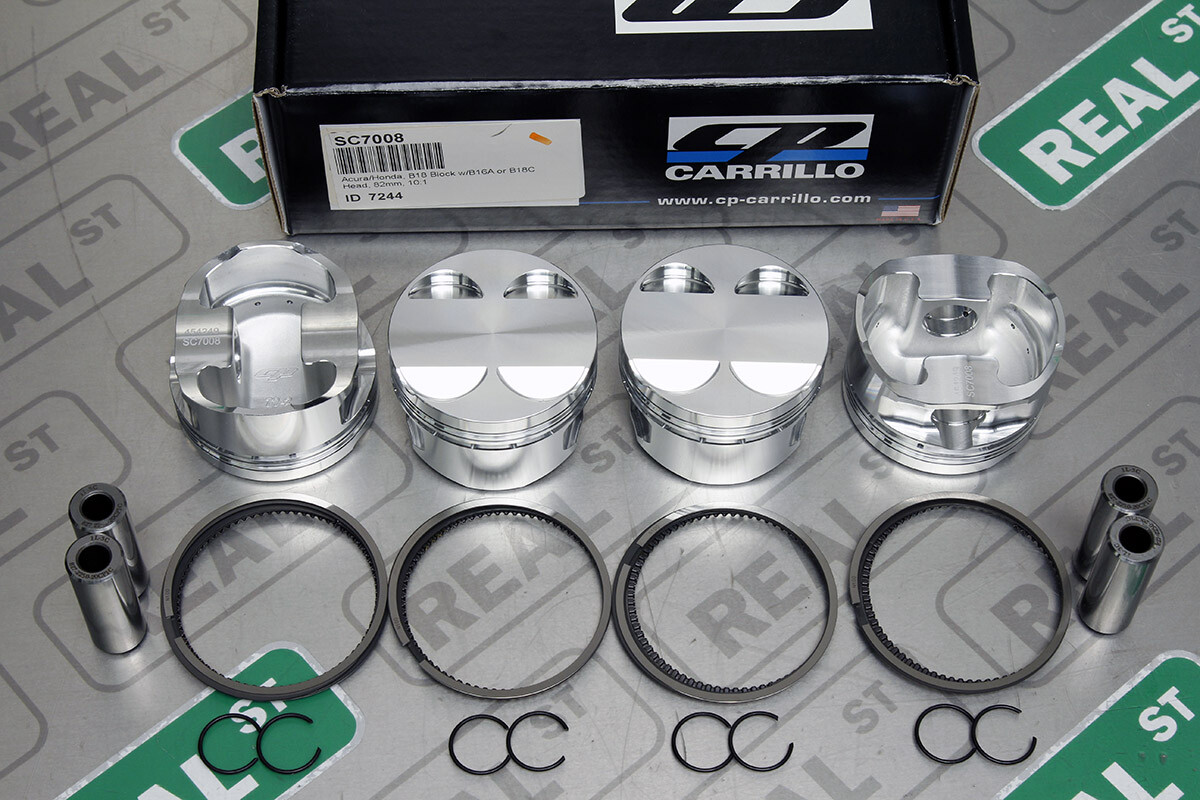

Carrillo SC7008-1 Forged Piston 82mm 10.0:1 CR B18 Block Single

The Carrillo SC7008-1 is a high-performance forged aluminum piston designed for Honda/Acura B18 engine blocks used with B16A or B18C cylinder heads. This single piston features an 82mm bore size (+1.0mm oversize) with a 10.0:1 compression ratio, making it ideal for naturally aspirated or forced induction applications.

Key Specifications:

• Bore Size: 82.0mm (+1.0mm oversize)
• Compression Ratio: 10.0:1
• Compression Height: 29.9974mm (1.181 inches)
• Pin Diameter: 21mm
• Piston Weight: 287 grams
• Material: 2618 aluminum alloy forging
• Ring Thickness: 1.0mm x 1.2mm x 2.8mm
• Flat top design

Premium Features:

• Dedicated high-strength aluminum forgings for maximum durability
• Deep valve reliefs accommodate high lift camshafts and oversized valves
• Accumulator groove machined in 2nd ring land to collect excess blow-by
• Anti-detonation grooves protect the top ring by disrupting detonation waves
• Custom skirt cam and barrel design reduces friction and piston movement
• Fully CNC machined and balanced to +/- 1 gram
• Double pin oilers force fed from oil ring groove
• Wrist pin and pin locks included

CP-Carrillo pistons are engineered for maximum power and reliability, with proven performance in high-boost turbocharged applications rated at 550+ horsepower. Compatible with B18A, B18B, B18C, and B20 engine configurations when properly assembled.
