Carrillo SC7128-1 Forged Piston Honda Bore Compression - D16 75.5mm 10.5 1

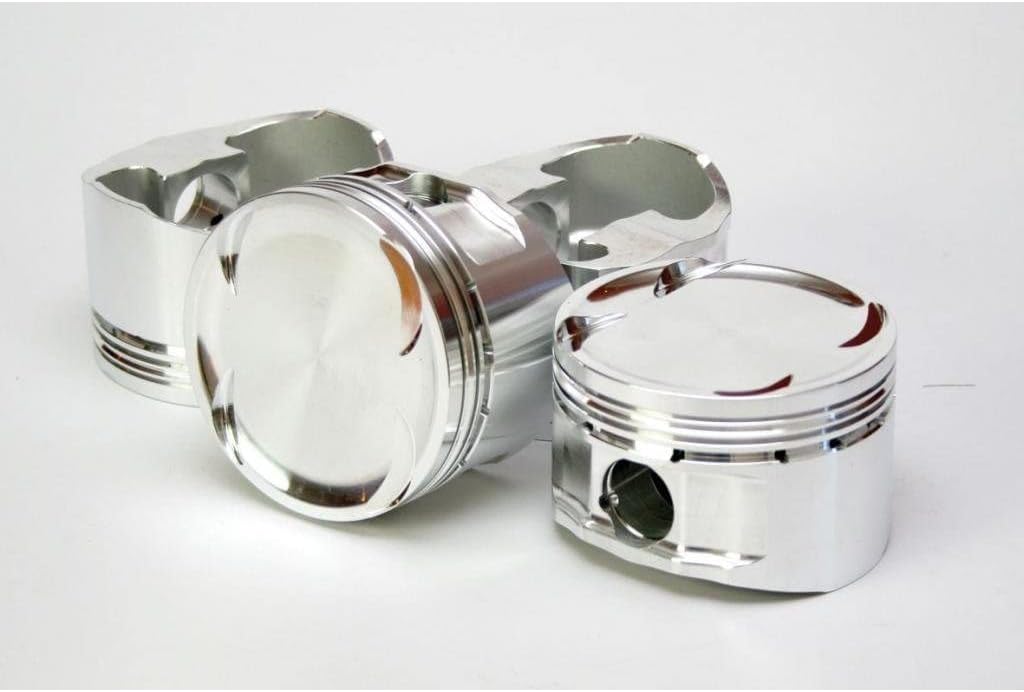

The Carrillo SC7128-1 is a high-performance forged aluminum piston engineered for Honda D16Z6/Y8 1.6L SOHC engines. This individual piston features a 75.5mm (2.972 inch) bore size with a 10.5:1 compression ratio, making it suitable for naturally aspirated, turbo, nitrous oxide, and supercharged applications.

Key Specifications:

• Bore: 75.5mm (2.972 inches)
• Compression Ratio: 10.5:1
• Compression Height: 1.181 inches
• Stroke: 90mm
• Rod Length: 137mm
• Pin Diameter: 19mm (0.748 inch)
• Piston Weight: 251 grams (advertised)
• Piston Style: Flat top with four valve reliefs

Premium Features:

• High-strength forged aluminum construction for maximum durability
• Fully CNC-machined and balanced to +/- 1 gram for smooth operation
• Deep valve reliefs accommodate high-lift camshafts and +1mm oversized valves
• Custom skirt cam and barrel design for reduced friction
• Accumulator grooves for improved oil distribution
• Double pin oilers with force-fed oil ring groove
• Pick lock grooves for easy lock removal
• DLC coated wrist pin included at no additional cost
• High-performance piston rings included

CP-Carrillo pistons are engineered using sophisticated computer modeling and state-of-the-art 5-axis CNC machining to deliver superior performance and reliability. Each piston is manufactured with proprietary tooling and dedicated cutters to ensure precise tolerances and optimal engine performance. The SC7128 platform is rated for 550+ horsepower applications.
