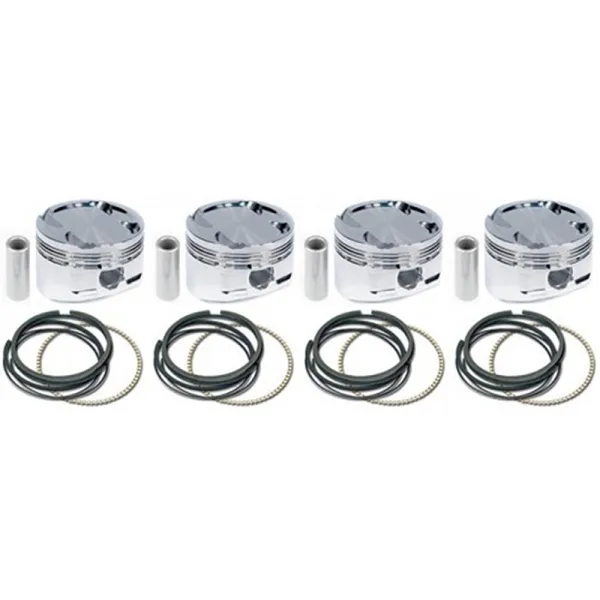

Carrillo SC7117-1 Forged Piston Kit Honda B16A 84mm Bore 10.4:1

The Carrillo SC7117-1 is a high-performance forged piston kit engineered specifically for Honda/Acura B16A engines. This premium piston set features an 84mm (3.307-inch) bore diameter with a 1.6cc dome design, delivering a 10.4:1 compression ratio for increased power output in naturally aspirated applications.

Key Specifications:

• Bore Size: 84mm (3.307 inches)
• Compression Height: 1.181 inches (30mm)
• Compression Ratio: 10.4:1
• Advertised Weight: 308 grams per piston
• Dome Volume: 1.6cc
• Compatible with 77.4mm stroke and 134.3mm connecting rod length

Premium Construction and Features:

• High-strength aluminum forgings for maximum durability
• Fully CNC-machined and balanced to +/-1 gram for smooth operation
• Compatible with oversized valves and high-lift camshafts
• Deep valve relief depth accommodates high-lift camshaft profiles
• Custom skirt cam and barrel design for reduced friction
• High-performance ring set included
• Wrist pins included at no additional cost

CP-Carrillo pistons represent professional-grade quality and are designed through extensive research and development with support from leading motorsports teams. Each piston is engineered using sophisticated computer modeling for optimal performance and reliability. Set includes 4 pistons with rings for complete cylinder rebuild.
