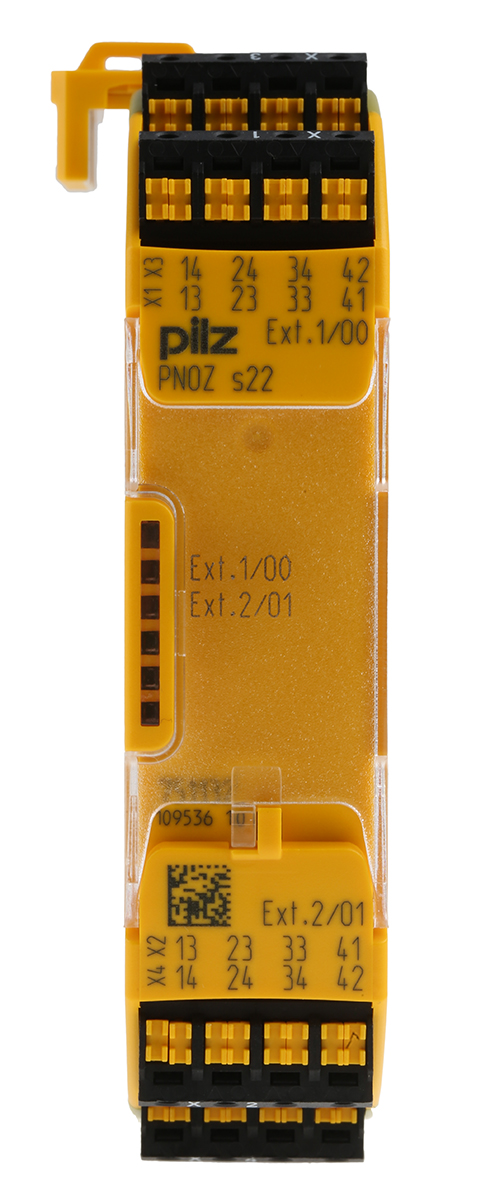

Pilz 751132 PNOZ s22 C Safety Relay Expansion Module 24VDC Dual Channel

Manufacturer

Part Number

751132
Sale Price

$609.84

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Pilz 751132 PNOZ s22 C is a dual-channel safety relay expansion module designed for industrial safety applications. This expansion module connects to PNOZ s30, PNOZ mm0.1p, and PNOZ mm0.2p base units to increase the number of available safety contacts in your safety circuit.

Key Features:

  • Dual-channel design with two separate safety channels
  • 6 normally open (N/O) safety contacts and 2 normally closed (N/C) auxiliary contacts
  • 24V DC supply voltage with -15%/+20% tolerance
  • Low power consumption at only 1.5W
  • DIN rail mountable for easy installation
  • Compact design: 22.5mm width x 98mm length x 120mm depth
  • Performance Level e (PL e) per ISO 13849-1
  • Safety Category 4 per ISO 13849-1
  • IP40 protection rating

Technical Specifications:

  • Contact rating: 6A at 240V AC, 4A at 24V DC
  • Terminal type: Plug-in screw terminals and spring-loaded cage clamp terminals
  • Contact material: Silver-copper-nickel alloy
  • Operating temperature range: -10°C to +55°C
  • Internally redundant with built-in self-monitoring
  • Complies with EN 60947-5-1, EN 60204-1, and VDE 0113-1
  • Certifications: CCC, EAC (Eurasian), TÜV, cULus Listed

The PNOZ s22 C expansion module is ideal for applications requiring additional safety outputs in machine control, emergency stop circuits, safety door monitoring, and other industrial safety systems. The maximum achievable safety level depends on the connected base unit.
