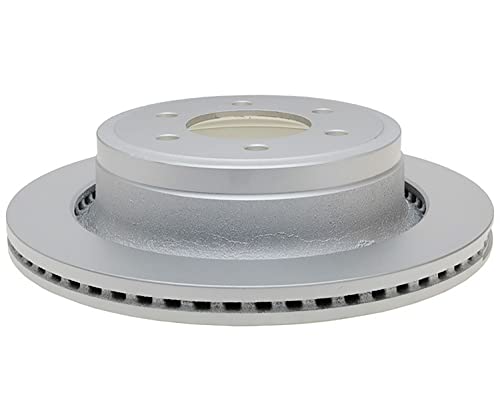

Raybestos 680976FZN Element3 Coated Vented Rear Brake Rotor, Drum-In-Hat

The Raybestos 680976FZN Element3 coated brake rotor is a vented, drum-in-hat disc brake rotor. It has an integrated parking brake drum and is built for rust-prone environments. A Grey Fusion 4.0 coating with Rust Prevention Technology (RPT) helps the rotor resist corrosion and red rust from salt and harsh road conditions. It is sold as one rotor per part number.

Key Features:

• Grey Fusion 4.0 zinc-based coating with RPT rust prevention technology
• Cast iron construction from OE-matched G3000-qualified material
• Vented, smooth, non-directional friction surface
• Drum-in-hat design with integrated parking brake surface
• Mill balanced to minimize vibration and pedal pulsation
• Turned finish, ready to install
• Matches OE design, vane configuration and weight

Specifications:

• Outside diameter: 13.705 in (348.1 mm)
• Overall height: 3.142 in (79.8 mm)
• Nominal thickness: 0.984 in (25 mm)
• Minimum (discard) thickness: 0.906 in (23 mm)
• Inside diameter: 10.181 in (258.6 mm)
• Center hole diameter: 3.55 in (90.15 mm)
• Bolt circle: 5.315 in (135 mm)
• Lug holes: 6, each 0.61 in (15.5 mm)
• ABS tone ring: not included

OE Cross-References: CL3Z2C026A, CL3Z2C026C, CL3Z2C026F, FL3Z2C026C.

This rotor suits daily commuting and normal street driving. It keeps the original look and function of the brakes while adding corrosion protection.
