Manley 29520PB Ford 4.6L Modular Rotating Assembly 3.750" Stroke -14cc Dish Pistons

Manufacturer

Part Number

29520PB
Black Friday Price

$3,627.22

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 29520PB is a complete rotating assembly engineered for Ford 4.6L Modular engines, featuring a 3.750" stroke crankshaft, 3.572" bore, and -14cc dish pistons. This Pro Series kit is designed to increase displacement and deliver maximum performance for high-horsepower builds.

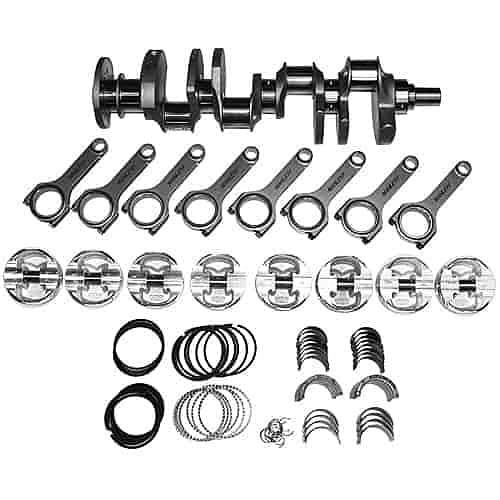

Complete Assembly Includes:

  • Lightweight 4340 forged steel crankshaft with 3.750" stroke
  • 4340 forged steel H-beam connecting rods with 3/8" ARP 8740 cap screws (optional ARP 2000 cap screws available)
  • 2618 forged aluminum Platinum Series pistons with premium chrome moly wrist pins
  • High-performance piston rings and Clevite "H" Series rod bearings (narrowed)

Key Specifications:

  • Stroke: 3.750 inches
  • Bore: 3.572 inches
  • Connecting Rod Length: 5.850 inches
  • Piston Dish: -14cc

The increased 3.750" stroke turns your 4.6L into a 5.0L or larger displacement depending on your bore, delivering substantial gains in torque and horsepower. Each component is precision-manufactured from premium materials to withstand the extreme demands of racing and high-performance street applications. This balanced rotating assembly is ideal for engine builders seeking race-proven reliability and maximum power output from Ford Modular platforms.

Products specifications

Make

Ford

Piston Head Type

Dish

Engine Type

ICE

Piston Volume

-14.00

Engine

4.6L Modular

Rod Bolt Material

ARP 8740

Product Type

Engine Crankshaft Rotating Assembly

Engine Stroke

3.750

Cylinder Head

3 Valve Cylinder Head

Displacement

300

Title

Manley Rotaing Assembly, FORD 4.6L 3.750 STROKE/3.572/-14cc DISH

Connecting Rod Length

5.850

Additional Info

Main bearings not included with kit. Ford block M-6010-BOSS50 uses main bearing 33130. Order part number 33120 (Romeo Iron), 33130 (Windsor Iron) or 33140 (Windsor Aluminum)

Piston Bore Diameter

3.572

Connecting Rod Part Number

14044

Crankshaft Part Number

190360

Piston Part Number

595520C

Piston Ring Part Number

46620

Compression Ratio with Head

9.51:1 with 51.00 CC Head

Crankshaft Balance Type

Precision Balanced
