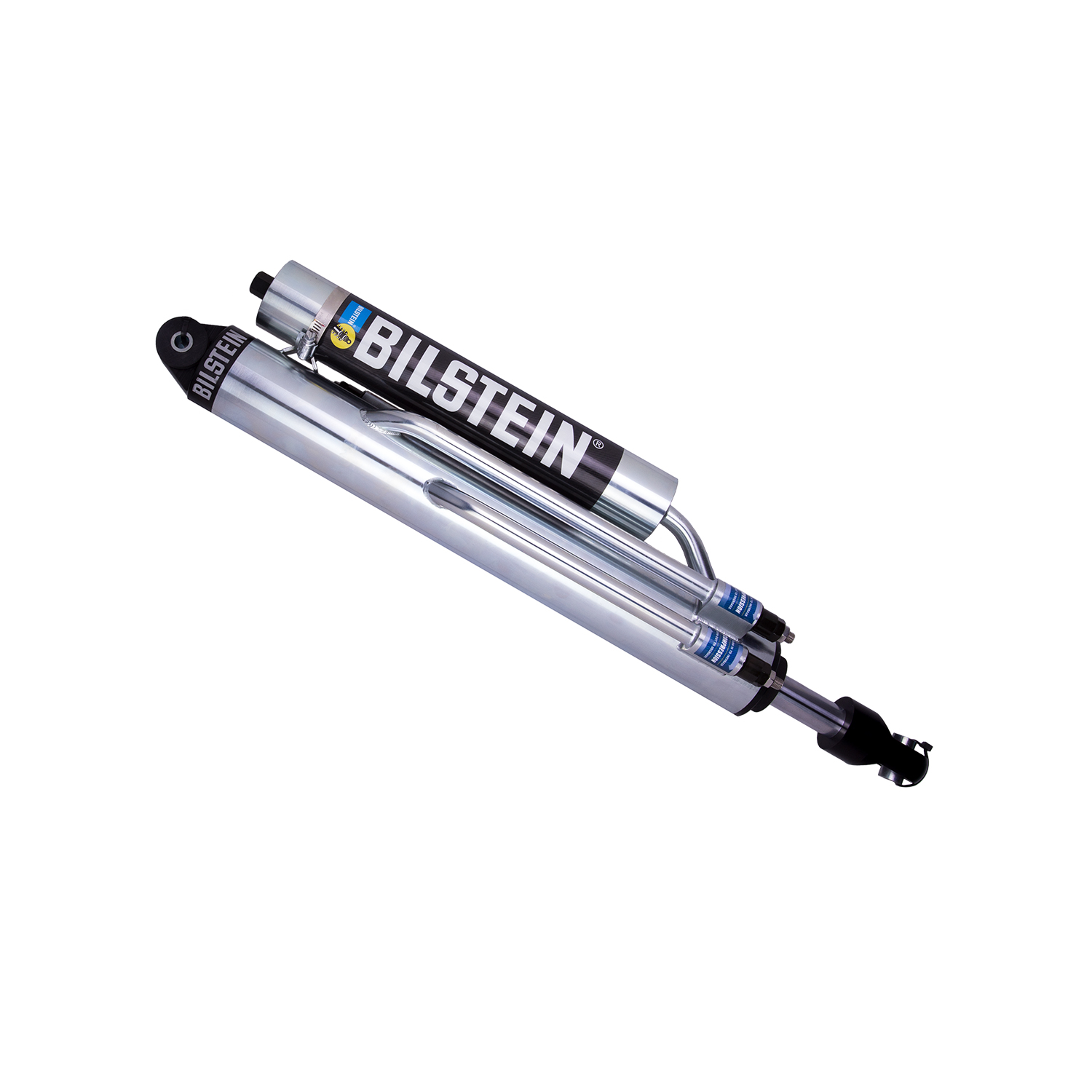

Bilstein 33-250786 M 9200 Bypass Shock Absorber for Off-Road Motorsports

The Bilstein M 9200 (Bypass) is a competition-grade, externally adjustable bypass shock absorber engineered specifically for professional off-road motorsports and custom suspension builds. Offering multiple zones of position-sensitive damping, this shock delivers precise, tunable control over the full range of suspension travel for serious off-road performance.

Key Features:

• Position-sensitive damping with independent adjustment for both rebound and compression
• Available in 3-tube or 4-tube bypass configurations to suit a variety of race and performance applications
• Includes an integrated piggyback reservoir for increased fluid capacity and improved heat dissipation
• 60mm or 70mm large-bore hard-anodized aluminum piston combined with a 1⅛" case-hardened, centerless-ground piston rod for exceptional tensile strength
• Internal piston machined from 7075 aluminum and hard-anodized to withstand extreme operating conditions
• Bypass adjusters utilize an incremental high-flow metering check valve for independent rebound and compression tuning
• 3-stage rod guide seal for enhanced durability and extended shock life
• Synthetic high-temp shock oil and high-temp hose ensure consistent performance under demanding conditions
• Zinc-plated construction for superior corrosion resistance in off-road environments
• Completely owner-rebuildable and revalvable — all service components sold separately
• Sold by length for custom fitments

The Bilstein M 9200 (Bypass) is the professional's choice for dialing in an off-road suspension setup. Whether you're building a race truck, buggy, or high-performance off-road vehicle, this shock absorber provides the tunability and durability required to perform at the highest level.
