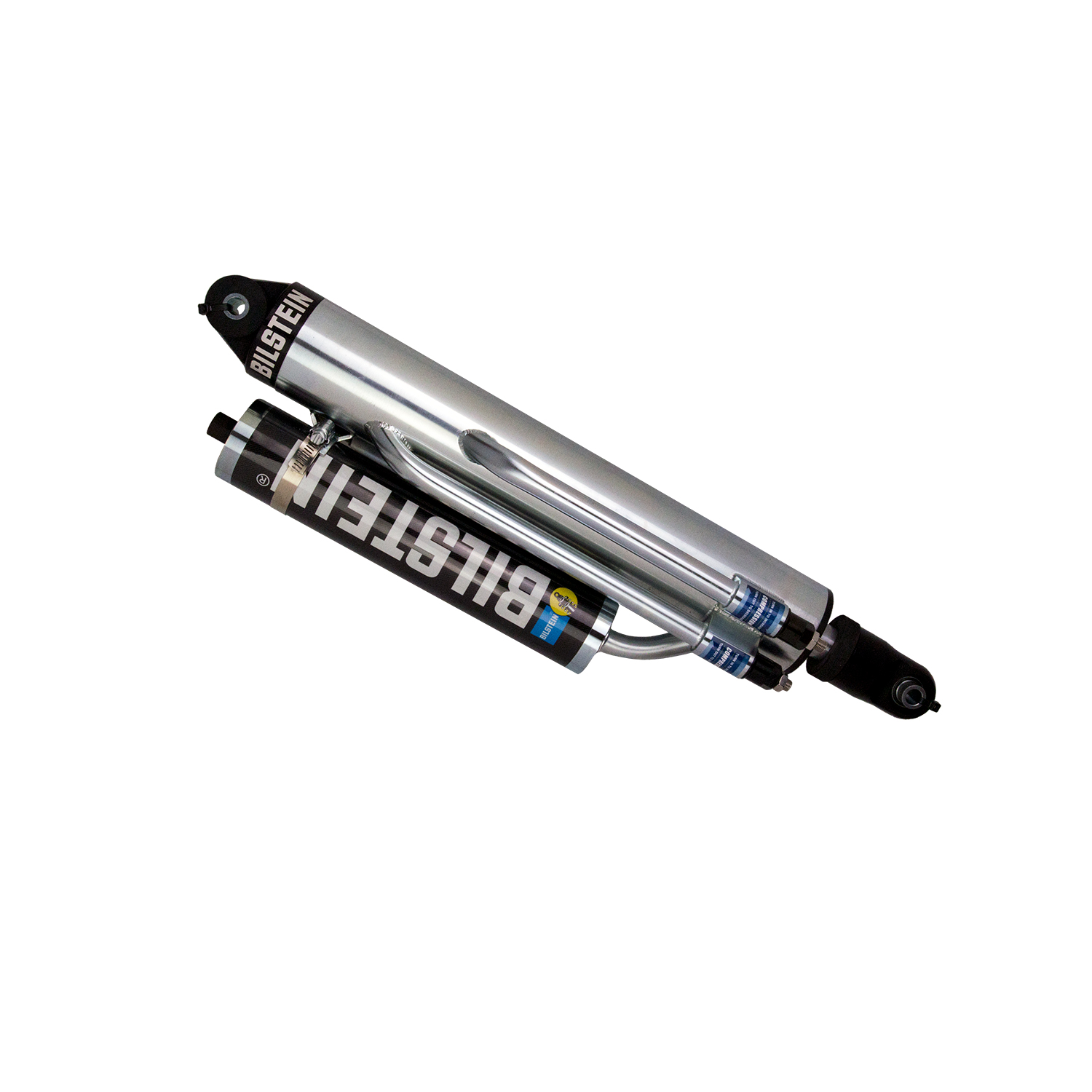

Bilstein 33-250779 M 9200 Bypass Position-Sensitive Shock Absorber for Off-Road Motorsports

The Bilstein M 9200 (Bypass) is a competition-grade shock absorber engineered specifically for professional off-road motorsports. Featuring position-sensitive damping, this bypass shock delivers precise, tunable suspension control across multiple zones, making it the go-to choice for serious off-road racers and builders who demand the highest level of performance.

Key Features:

• Position-Sensitive Damping: Offers 6 independent zones of damping control for highly responsive, terrain-adaptive performance
• 4 External Adjusters: Features 2 rebound and 2 compression adjusters for independent, on-the-fly tuning
• 3-Tube or 4-Tube Configurations: Available in triple and quadruple bypass designs to suit a wide range of custom builds
• 60mm and 70mm Monotube Options: Large-bore, hard-anodized aluminum piston combined with a 1⅛" case-hardened, centerless-ground piston rod for exceptional strength and durability
• Piggyback Reservoir Included: 60mm piggyback reservoir provides additional fluid capacity for sustained high-performance operation
• Multiple Stroke Lengths: Available in stroke lengths ranging from 8" to 18" for maximum fitment flexibility
• Owner Rebuildable and Revalvable: Fully serviceable by the owner; all replacement components are sold separately
• High-Flow Metering Check Valve: Bypass adjusters utilize an incremental high-flow metering check valve for precise, independent rebound and compression tuning
• 7075 Aluminum Internal Piston: Hard-anodized for superior resistance to extreme internal shock absorber conditions
• 3-Stage Rod Guide Seal: Enhances durability and extends service life under demanding off-road use
• Custom Fitment: Sold by length to accommodate custom suspension configurations — mounting hardware not included
• 90-Day Manufacturer Warranty: Backed by Bilstein's limited warranty against defects in materials and workmanship

The Bilstein M 9200 Bypass shock absorber is the ultimate solution for tuning a custom off-road suspension. Whether building for desert racing, rock crawling, or any other professional-level off-road motorsport application, the M 9200 delivers unmatched adjustability, durability, and long-term reliability.
