Speedometer Drive Gear

What Is a Speedometer Drive Gear?

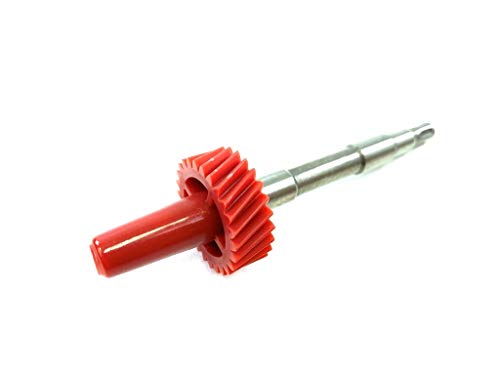

Speedometer gears are small components located in the transmission of a vehicle that drive the speedometer cable and indicate vehicle speed. The speedometer drive and driven gears function by converting the rotational motion of the transmission output shaft to the linear motion of the speedometer cable. As the output shaft rotates, the drive gear (usually around the output shaft) meshes with the driven gear on the speedometer cable, causing the cable to rotate and spin the speedometer needle in the gauge.

Speedometer drive gears are typically located at the rear of the vehicle's transmission, where they connect to the transmission's output shaft — the ideal placement for accurately measuring output shaft speed, which is essential for determining road speed. The drive gear sits on the transmission output shaft, while the driven gear is located in a removable housing usually in the tailhousing of the transmission.

Why Speedometer Drive Gear Accuracy Matters

Your speedometer is one of the most crucial pieces of equipment on your car. A malfunctioning or non-functional speedometer can get you in trouble, as it is illegal in some states to drive with this condition — so ensuring your speedometer functions with reasonable accuracy is essential.

Speedometer accuracy can be knocked off by a number of common modifications. If you add a larger tire to your vehicle, you need to recalibrate your speedometer. The same applies after a transmission swap, rear axle ratio change, or differential upgrade. Several variables affect correct gear selection, including the rear tire size (or more precisely the tire's rolling diameter) and the rear axle ratio. Speedometer gears are typically made of plastic and can be easily replaced if they become worn or damaged — and a malfunctioning gear can cause inaccurate speed readings or cause the speedometer to stop functioning altogether.

Choosing the Right Speedometer Drive Gear

When choosing a speedometer drive gear replacement, the first step is to confirm the year, make, model, and transmission type of your vehicle. Next, confirm the correct drive and driven gear tooth count combination that will create an accurate speedometer reading — done with a formula that includes the rear gear ratio and tire diameter. Be aware that some transmissions will have different driven gear housings depending on the tooth count of the driven gear.

Top Speedometer Drive Gear Brands

Fairchild is a leading name in OE-style speedometer drive gear replacements, with a particularly strong lineup for Jeep applications. Their gears — such as the D-series line covering Cherokee and Wrangler models — are engineered with a factory-like design for effortless installation, ensuring a perfect match with the vehicle and made of high-quality components for durability, reliability, and performance.

ACDelco brings its trusted GM heritage to speedometer drive gear components, offering direct-fit parts built to OEM specifications — a natural choice for owners of GM vehicles seeking a reliable, factory-quality replacement.

TCI Auto is a performance-oriented transmission specialist with one of the broadest selections of speedometer gears in the category. Their speedometer gears are designed for a wide range of automatic transmissions like 700R4, TH350, TH250, and others, letting you fine-tune the driven and drive gear ratios to match tire size, axle ratio, or transmission swap changes with confidence. TCI stocks the most popular speedometer gears for GM, Ford, and Chrysler applications.

ATP rounds out the category with reliable replacement drivetrain components, providing a practical solution for drivers who need a quality OE-style speedometer gear without modifications.

Crown Automotive specializes in Jeep and Chrysler vehicle components, making them an ideal source for speedometer drive gears on platforms like the Jeep Wrangler, Cherokee, and Grand Cherokee.
