FiTech Fuel Injection 70051 Ultimate LS Standalone ECU with Transmission Control

Manufacturer

Part Number

70051
Black Friday Price

$1,141.90

3 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The FiTech 70051 Ultimate LS Standalone ECU is a complete engine and transmission management solution designed specifically for GM Gen III and IV LS engine swaps. This self-learning system replaces the factory computer and harness, making it ideal for retrofitting LS engines into older vehicles or custom builds using cable-operated throttle bodies.

Key Features:

  • Self-learning ECU with color touch screen handheld controller for easy setup and configuration
  • Integrated transmission control for 4L60, 4L65, 4L70, 4L80, and 4L85 GM automatic transmissions with programmable shift points and firmness
  • Sequential fuel and spark control with individual cylinder trim capability
  • 3 BAR MAP sensor that automatically detects up to 30 PSI of boost for power adder applications
  • Compatible with 24X and 58X crank and cam sensor configurations
  • Dual wideband O2 sensor control for precise air/fuel ratio management
  • Two programmable fan control outputs for temperature management
  • Tach and speedometer output drivers (5V) compatible with most aftermarket gauges
  • On-the-fly programmable target AFR and ignition timing adjustments
  • Knock sensor control for engine protection
  • Custom plug-and-play wiring harness that uses factory coil pack sub-harness

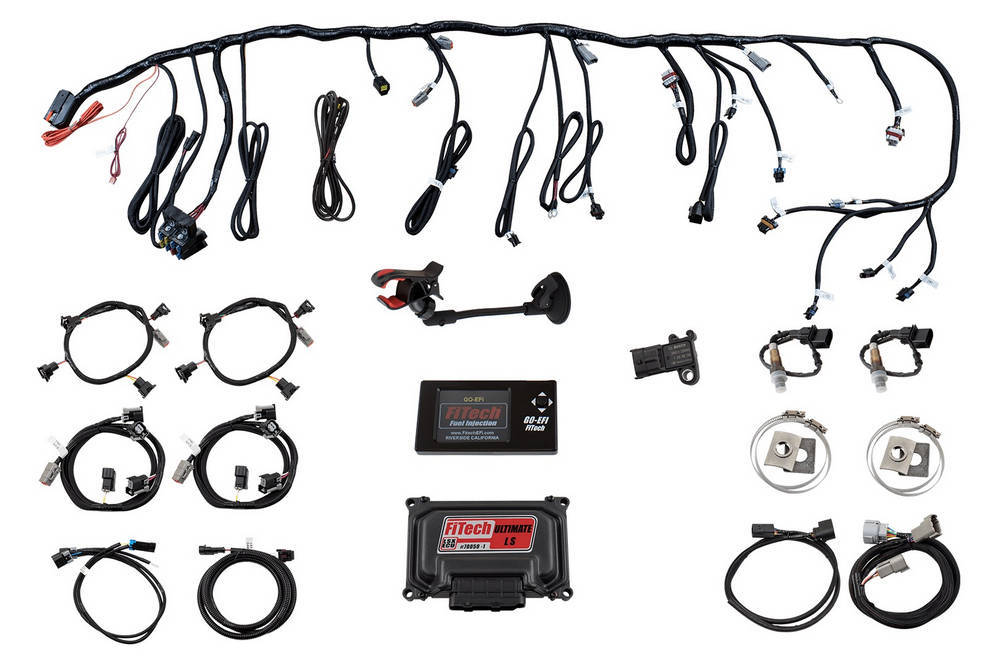

What's Included:

  • Ultimate LS standalone ECU module
  • Plug-and-play primary wiring harness with transmission control sub-harness

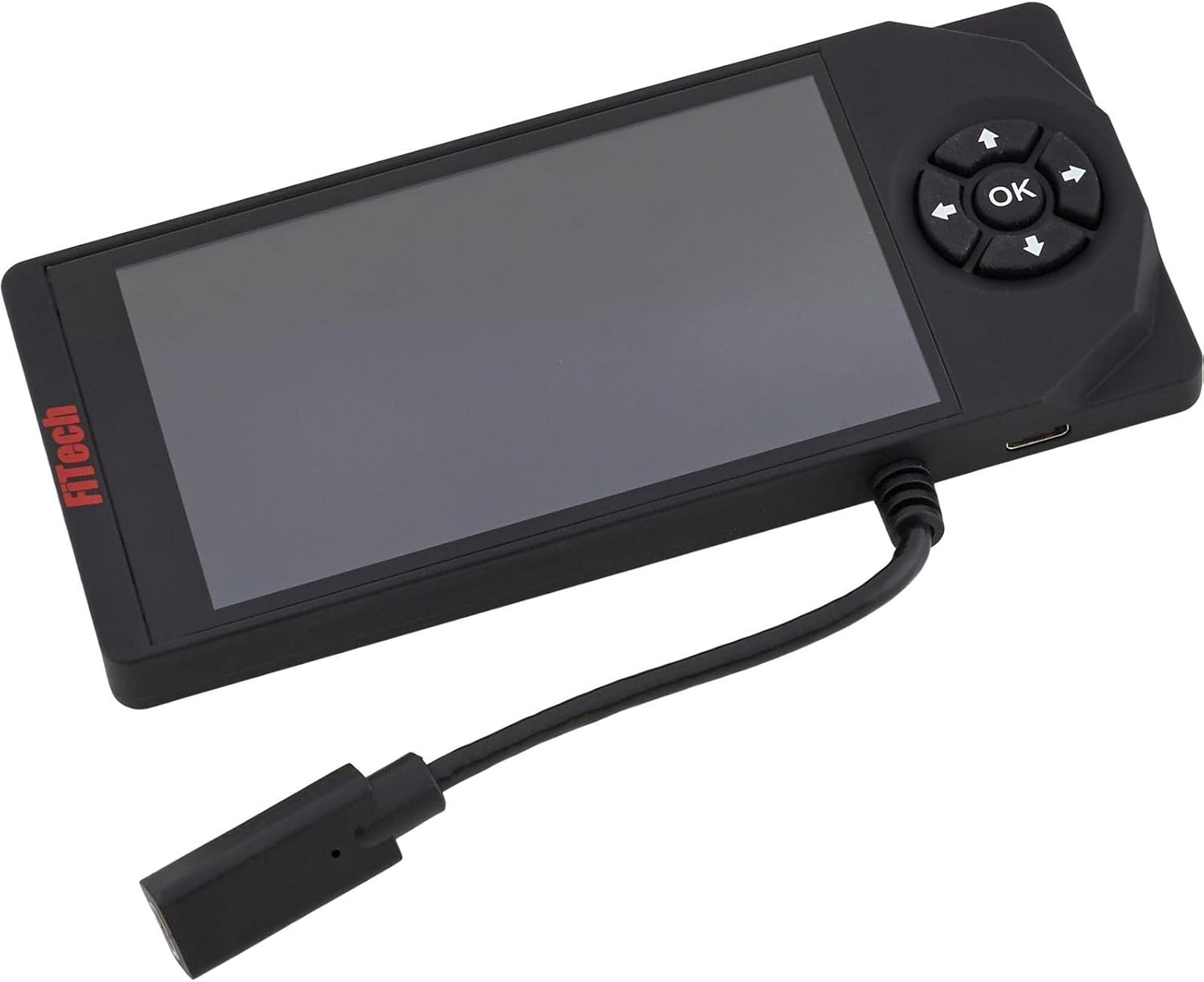

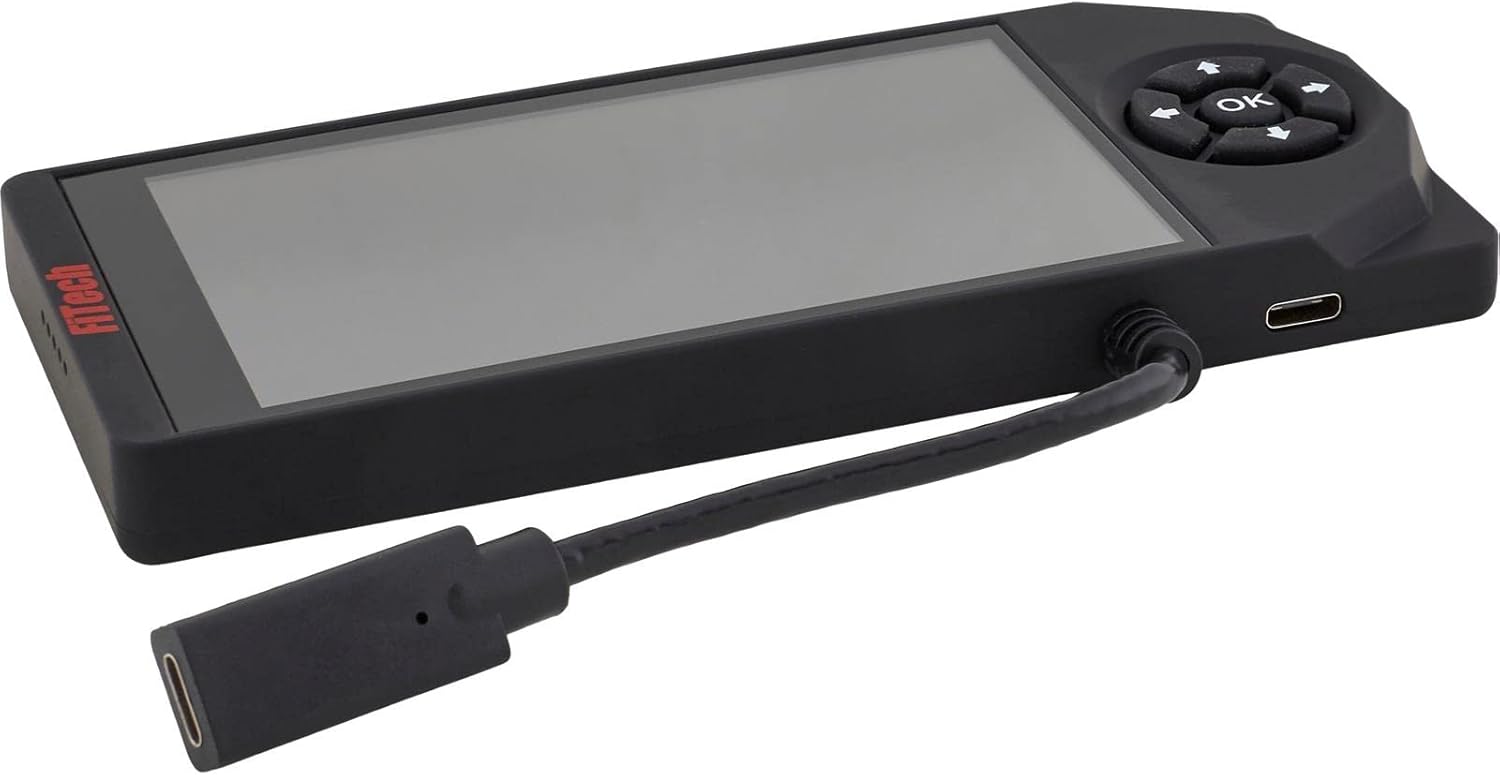

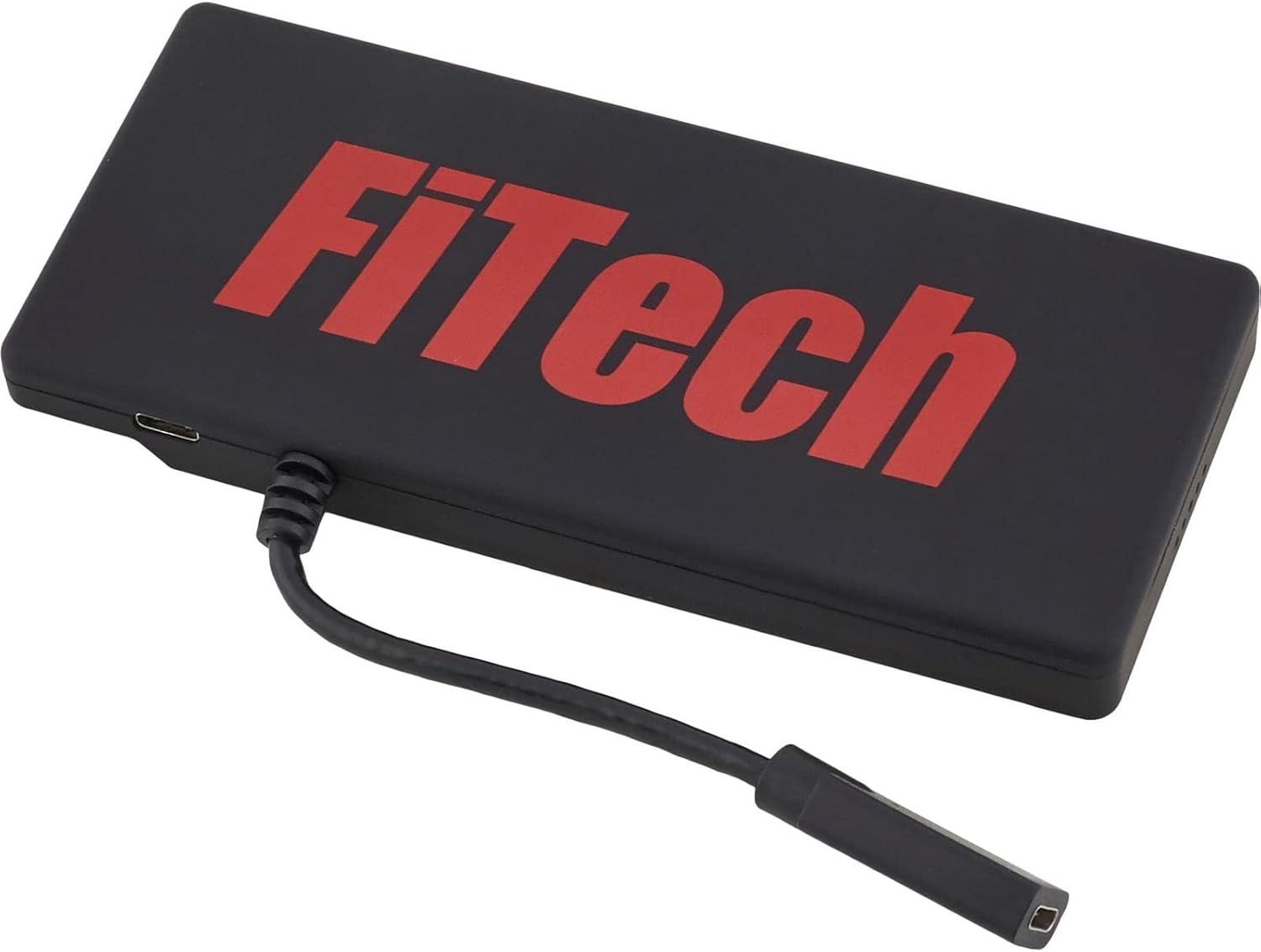

  • Color touch screen handheld controller with data logging capability and windshield mount
  • 3 BAR MAP sensor
  • Bosch wideband O2 sensor with stainless steel bung kit (clamp or weld-on style)
  • Fuel pump relay output

Application Notes: This system is designed for LS or similar engines equipped with crank and cam sensors. The Ultimate LS kit will self-learn to accommodate most cam swaps, with only very aggressive cam grinds requiring additional tuning. Must be used with cable-operated throttle bodies only—this kit does not support drive-by-wire throttle bodies or variable valve timing (VVT) engines, though these components can be removed for compatibility. Works with EV1 or EV6 style injectors. Not legal for use on emission-controlled vehicles; designed for vehicles that do not require emission controls.

Products specifications

EPA Classification

3
