Moroso 74111 Remote Push/Pull Battery and Alternator Disconnect Switch Kit

The Moroso 74111 is a complete remote push/pull battery and alternator disconnect switch kit designed for racing and high-performance applications. This kit allows you to mount the disconnect switch to a roll cage tube via a weld-on bracket, then actuate it remotely using a T-handle that protrudes through the rear panel — keeping the driver in control without direct access to the switch itself.

At the heart of this kit is the Moroso 74108 "Master Disconnect" 4-Pole switch, which simultaneously cuts both the battery circuit and the alternator feed with a single push or pull action — no relays required. The four terminals are rated at 125A continuous / 750A intermittent at up to 36V DC, making this switch suitable for demanding electrical loads found in competition vehicles.

Key Features:

• 4-Pole switch disconnects battery and alternator feed simultaneously — no relays needed
• Push/pull T-handle actuation via an 18-inch aluminum tube actuator link
• Swing arm linkage for smooth, reliable remote operation
• Four 3/8"-24 terminals: two (Terminal A) for battery circuit, two (Terminal B) for alternator circuit
• Rated 125A continuous / 750A intermittent at up to 36V DC maximum
• Indexing pin aligns switch with mounting panel and prevents rotation; fits panels up to 1/4" thick
• Black anodized aluminum construction for durability and corrosion resistance
• Includes switch position decal and switch location decal for exterior of vehicle

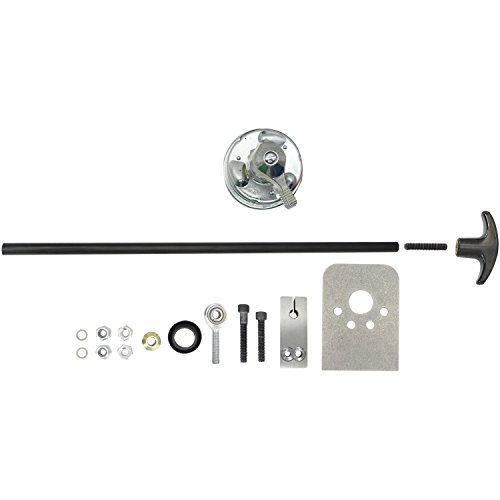

Kit Includes:

• Moroso 74108 Master Disconnect 4-Pole switch
• Mounting brackets and weld-on bracket
• Swing arm linkage
• 18" long aluminum tube actuator link
• All necessary bushings and fasteners
• Switch position decal and exterior switch location decal

The Moroso 74111 is ideal for circle track, drag racing, road racing, and off-road builds where sanctioning body rules require a remotely accessible master disconnect. It is a universal, non-application-specific kit compatible with a wide range of race and performance vehicles.
