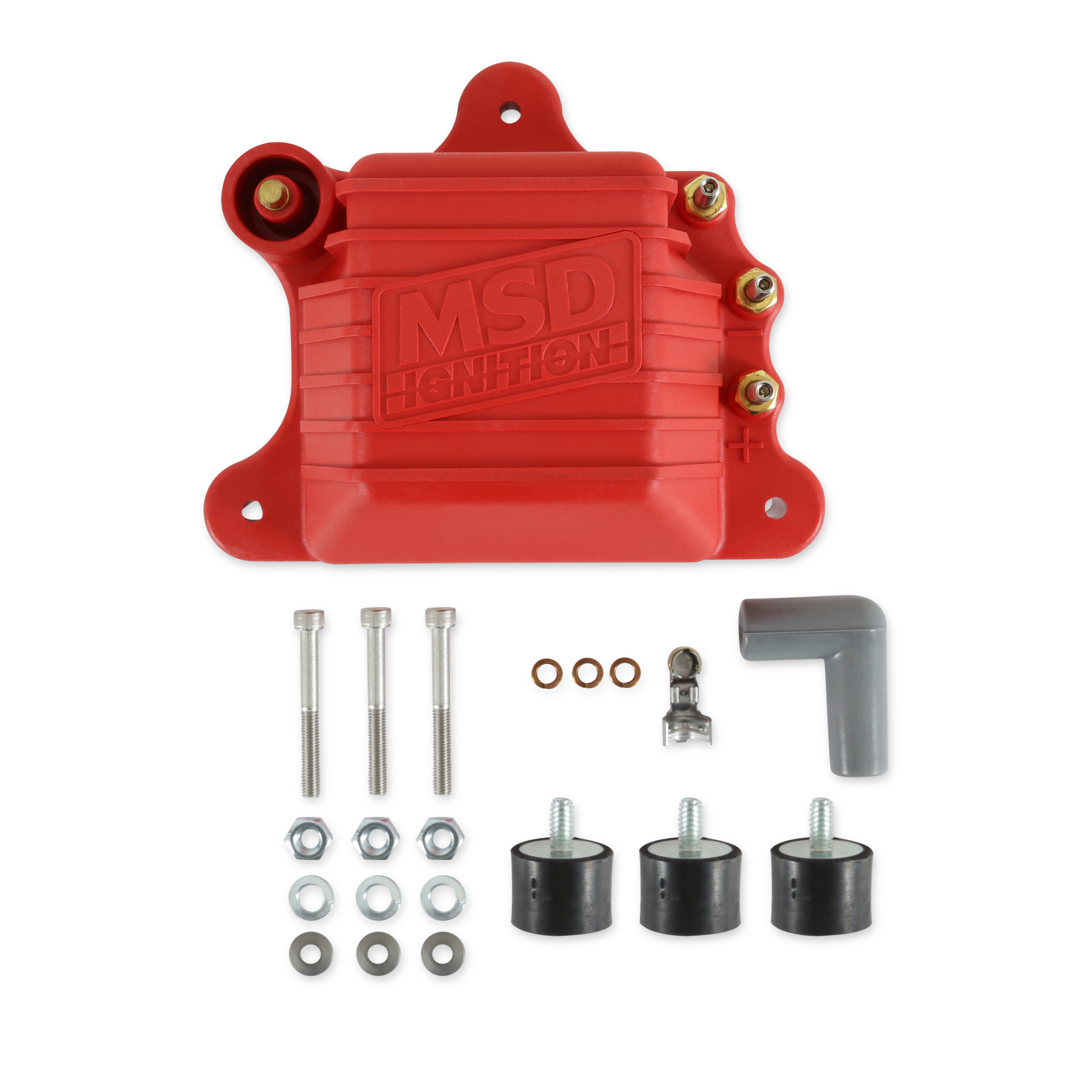

MSD 8142 Pro Mag 44 Amp Ignition Coil Red Magneto Drag Race

The MSD 8142 Pro Mag 44 Amp Ignition Coil is a purpose-built, high-output coil engineered specifically for use with the MSD Pro Mag 44 magneto ignition system. Designed for pro-level drag racing applications including nitro-burning Top Fuel and Funny Car competitors, this coil delivers the extreme voltage and current capacity required to ignite nitromethane fuel under massive cylinder pressures.

At its core, this coil is wound with over a pound of high-quality copper wire around a molded DuPont Rynite core, allowing it to handle the full 44 amps of primary current output from the Pro Mag 44 magneto. The stepped-up output reaches 45,000 volts, sending over one amp of current across the spark plug gap — the kind of firepower needed to reliably ignite nitro fuel and withstand extreme boost pressures. For durability in the brutally demanding environment of drag racing, all internal windings are fully encapsulated in rugged epoxy for maximum vibration resistance and long-term reliability.

Key Features:

• Designed exclusively for use with the MSD Pro Mag 44 magneto system
• 45,000-volt maximum output voltage
• 44-amp peak current capacity
• Over one pound of copper wire hand-wound around a molded DuPont Rynite core
• Full epoxy encapsulation for vibration protection and reliability

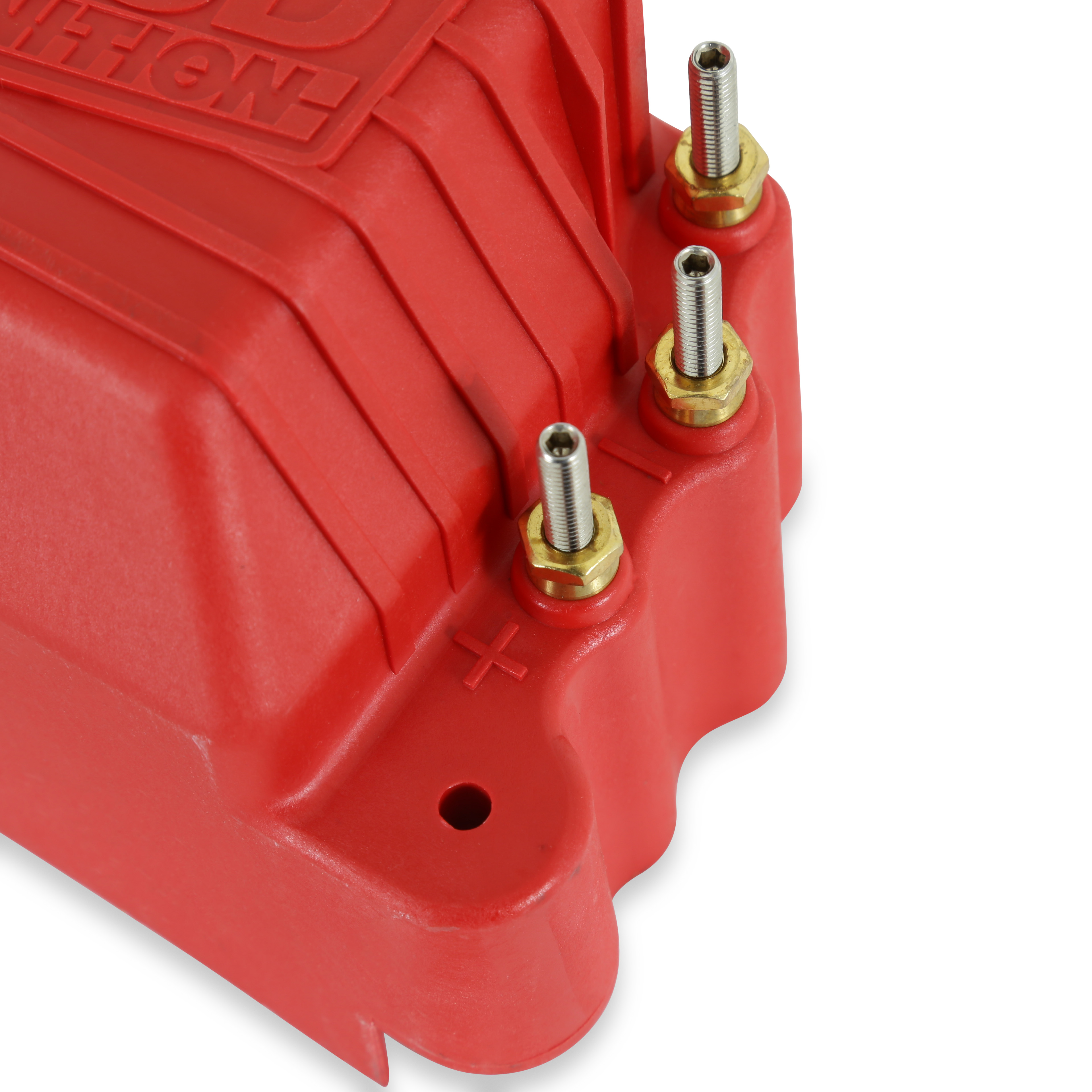

• Male HEI coil wire attachment

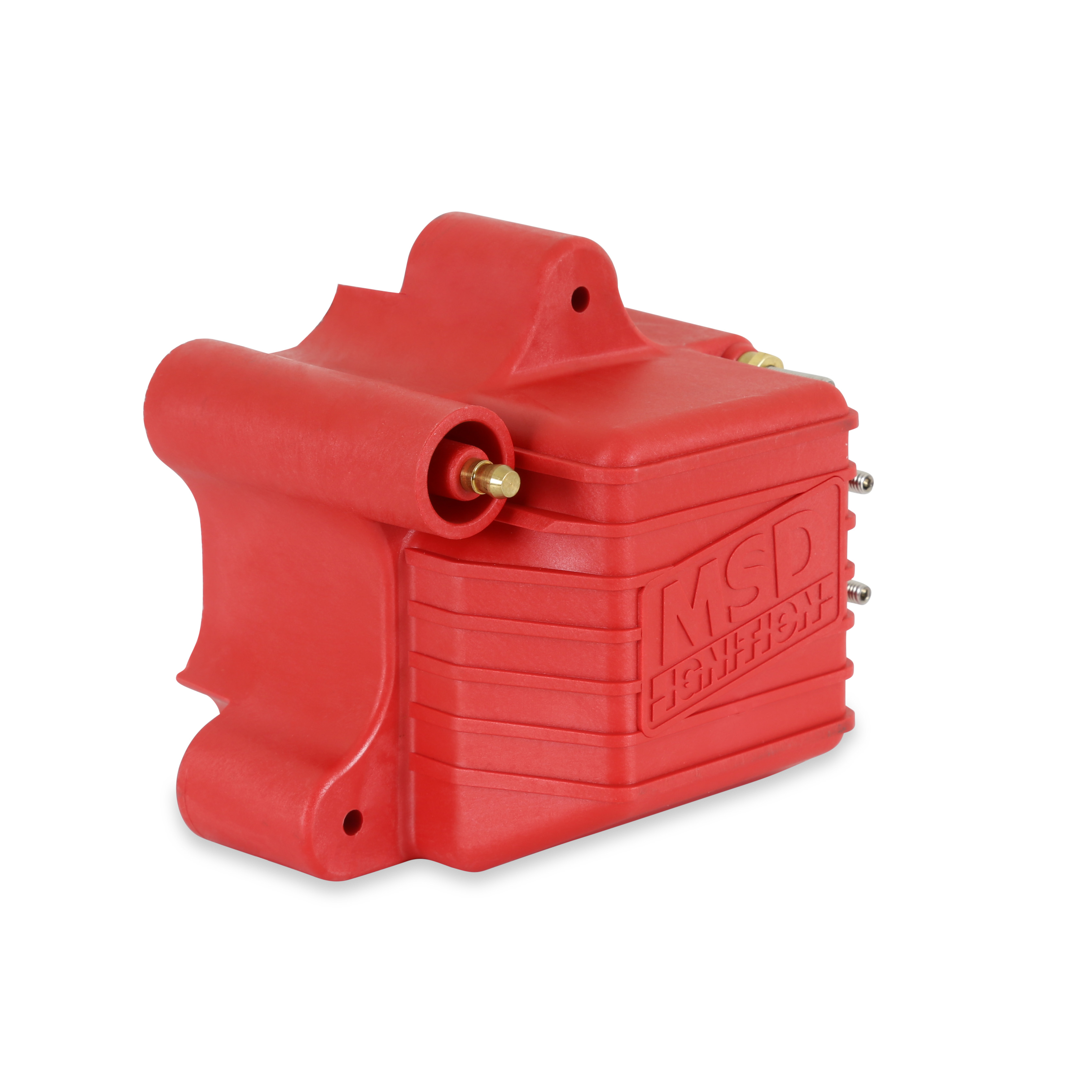

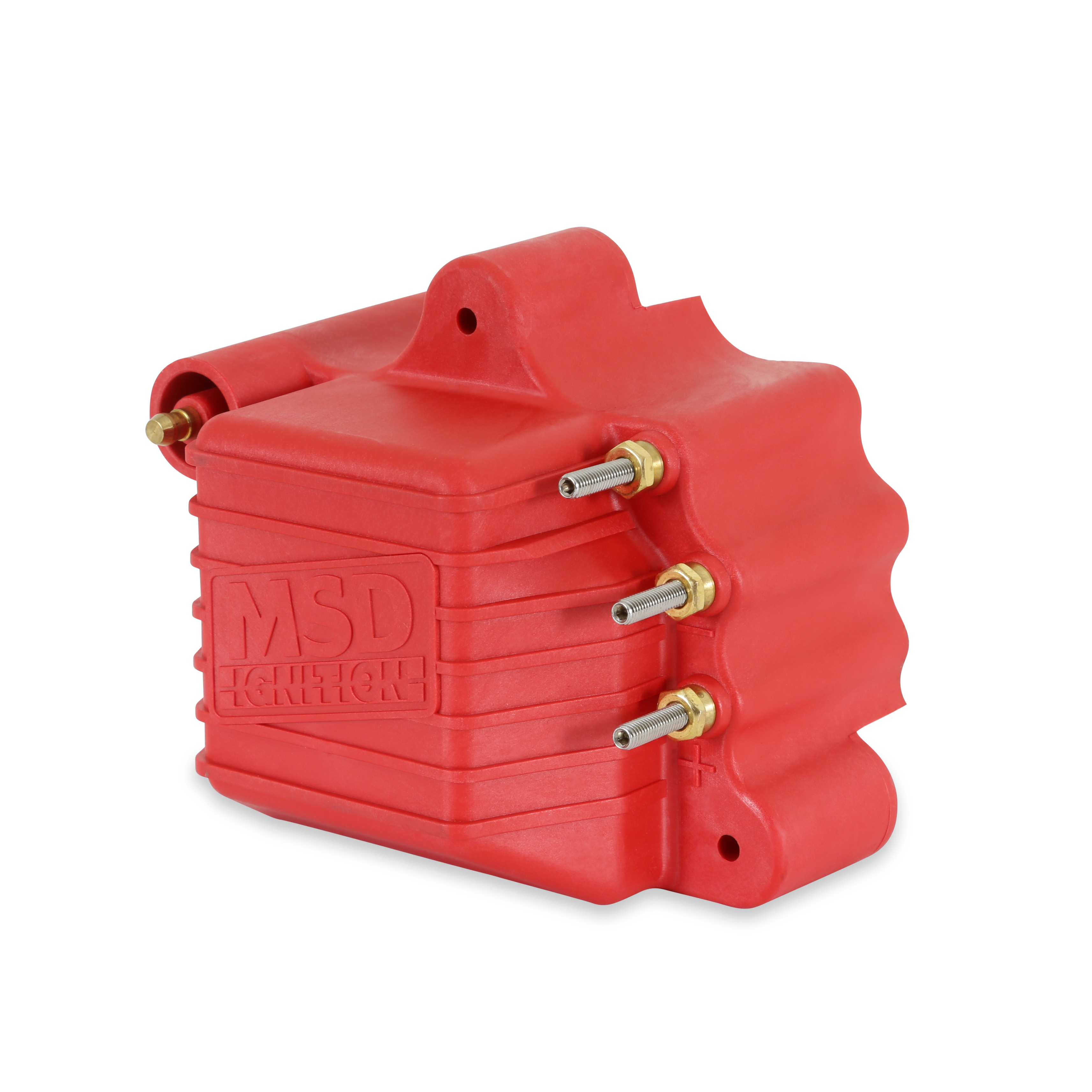

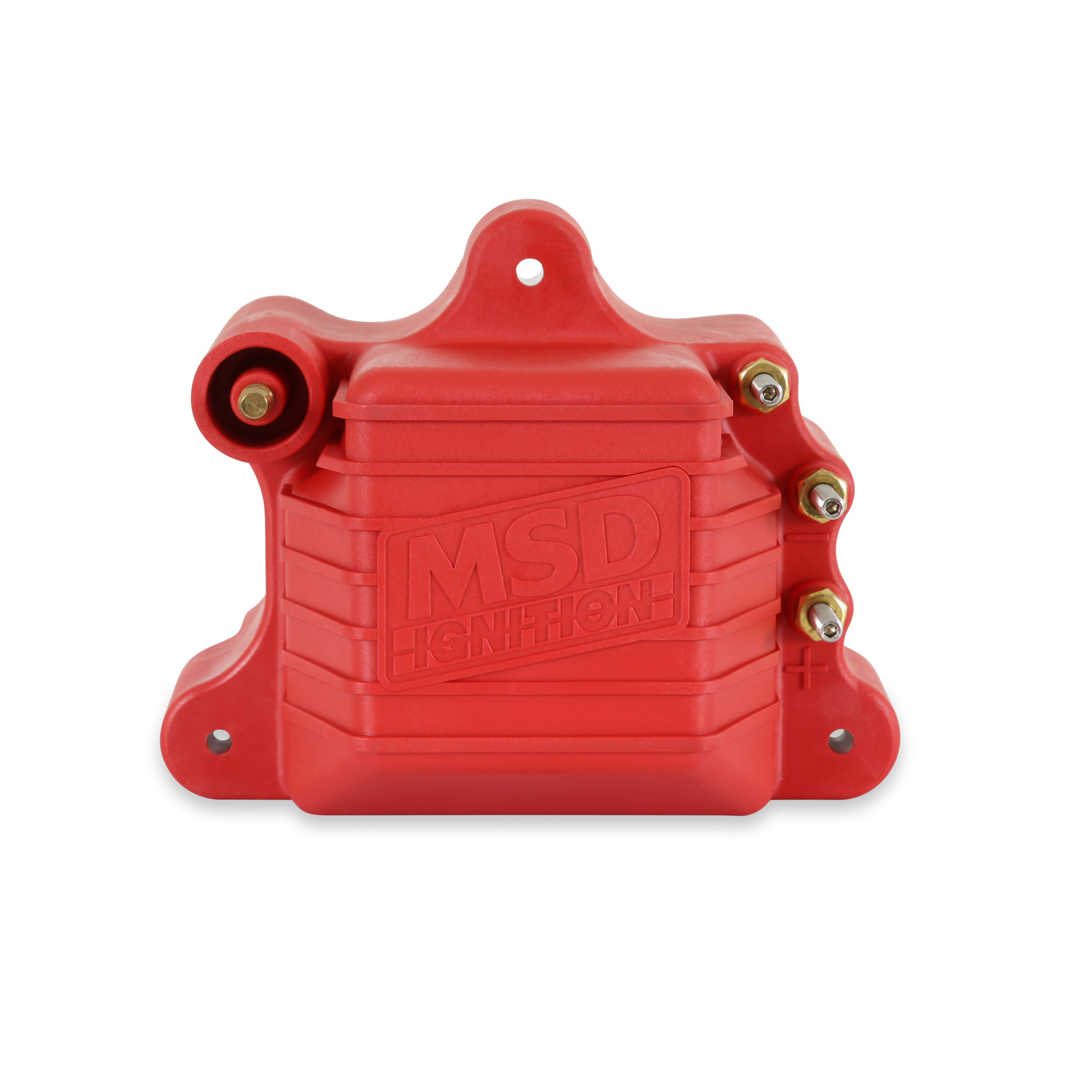

• Square coil shape with red housing for easy identification
• Sold individually
• Compatible with optional accessories including crank trigger, Timing Retard Control, and rev limiter
• Not compatible with the MSD Pro Mag 12 or Pro Mag 20

Specifications:

• Coil Color: Red
• Coil Style: Magneto
• Coil Shape: Square

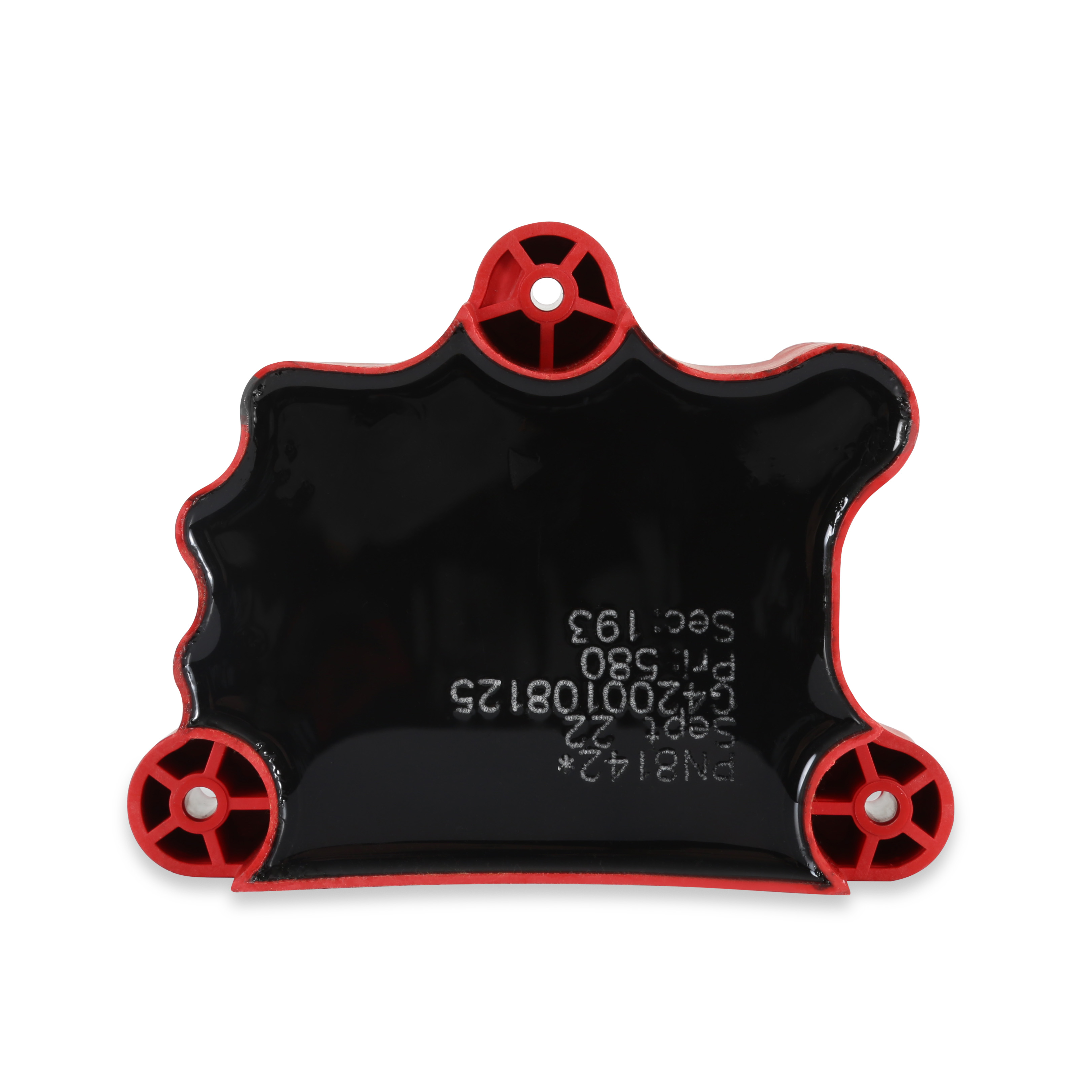

• Internal Construction: Epoxy
• Coil Wire Attachment: Male HEI
• Maximum Voltage: 45,000 V
• Peak Current: 44 Amps
• Spark Duration: 26 Degrees
• Overall Length: 5.5 in
• Height: 5.4 in
• Width: 4.9 in
• Ballast Resistor Included: No
• Mounting Bracket Included: No
• Coil Wire Included: No

Racing Use Only. This part is legal for sale or use on racing-use-only vehicles that are used exclusively for competition, are not registered, and are never used on public roads. Not legal for installation on emissions-controlled vehicles.
