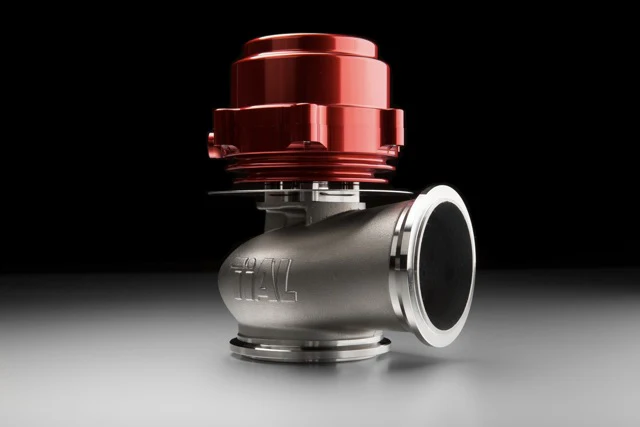

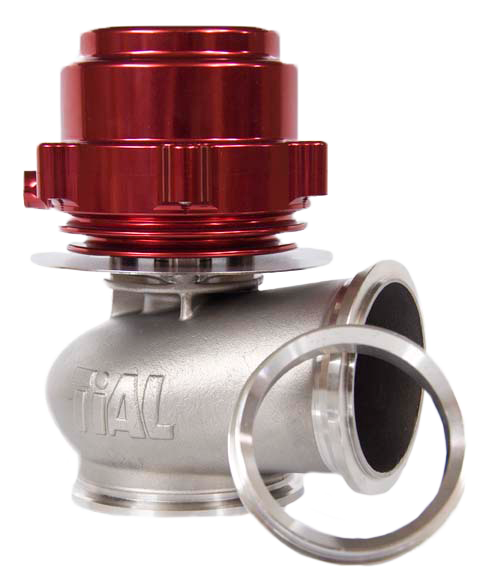

TiAL 004960 V50 50mm External Wastegate V-Band Turbo Boost Controller

Manufacturer

Part Number

004960
Sale Price

$523.80

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TiAL V50 is a high-flow 50mm external wastegate engineered for precision boost control in the most demanding turbocharged applications. Designed and manufactured entirely in-house by TiAL Sport in the United States, the V50 shares the same form factor as the legendary V60 but offers a smaller valve size—making it ideal for applications sensitive to exhaust manifold absolute pressure (EMAP)-induced valve lift.

Key Features:

  • 50mm V-Band Design: High-flow valve opening for maximum exhaust gas bypass capacity and accurate boost control
  • Proprietary High-Temp Alloy Construction: Housing and valve are cast and machined in-house from proprietary alloys, including Haynes HR120SS valve material and a 316SS alloy valve housing for superior corrosion, wear, and galling resistance
  • TiAL-Specific Valve Stem Coating: Rigorously tested wear coating applied via a TiAL-exclusive process for extended service life
  • Nomex-Reinforced Silicone Diaphragm: Provides reliable sealing and long-term durability under high-heat, high-pressure operating conditions
  • CNC-Machined Billet Aluminum Actuator Housing: Lightweight construction available in multiple anodized colors
  • 17-7 PH Stainless Steel Actuator Spring: Maintains consistent pressure at elevated temperatures
  • Dual-Port Diaphragm Chamber: M10 signal ports on both chambers allow for accurate boost control under all operating conditions
  • SS Band V-Clamps and Flanges Included: Complete kit includes stainless steel V-band clamps and flanges for easy installation
  • Wide Spring Range: Spring base pressures available from 2.17 psi to 15.21 psi (0.149 to 1.048 bar) to suit a variety of boost targets
  • USA Designed and Manufactured: Fully engineered in-house by TiAL Sport's engineering team

The TiAL V50 is a trusted choice in drag racing and road racing applications, delivering dead-on boost accuracy and a wide dynamic flow capacity optimized by TiAL's actuator-to-valve area ratio design philosophy. The kit includes the V50 wastegate assembly, SS band V-clamps, flanges, and all CNC-machined stainless steel and aluminum air fittings.
