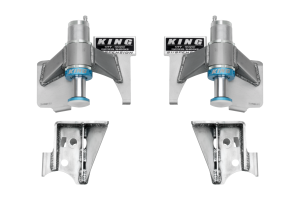

King 20001-151 2.0 Rear Hydraulic Bump Stop Kit

The King Shocks 20001-151 is a rear 2.0-inch diameter hydraulic bump stop kit engineered to deliver an additional level of bottoming control when using every bit of available suspension travel. Built from the same precision-machined components found in King's performance racing shocks, these bump stops are a direct upgrade over factory rubber bump stops.

Key Features:

• 2.0" x 2" stroke compact bump stop design maximizes suspension travel and accommodates a wide variety of aftermarket lift kits
• Unique piston design provides superior flow characteristics and generates maximum damping forces
• Micro-polished 1-1/4" hard-chromed shafts extend seal life and ensure smooth, consistent operation
• 4130 Chromoly mounting sleeves precision-machined for a secure, sturdy mount without pinching the bump stop body
• Aircraft-quality billet aluminum components machined from high-strength stock
• Double-sealed Schrader cover mounts to the body — not the valve itself — for a positive seal that keeps dirt and moisture out
• Long-wearing nylon contact pad ensures quiet operation and installs via a simple single-bolt design
• Adjustable and fully rebuildable — easily tuned and serviced with basic hand tools

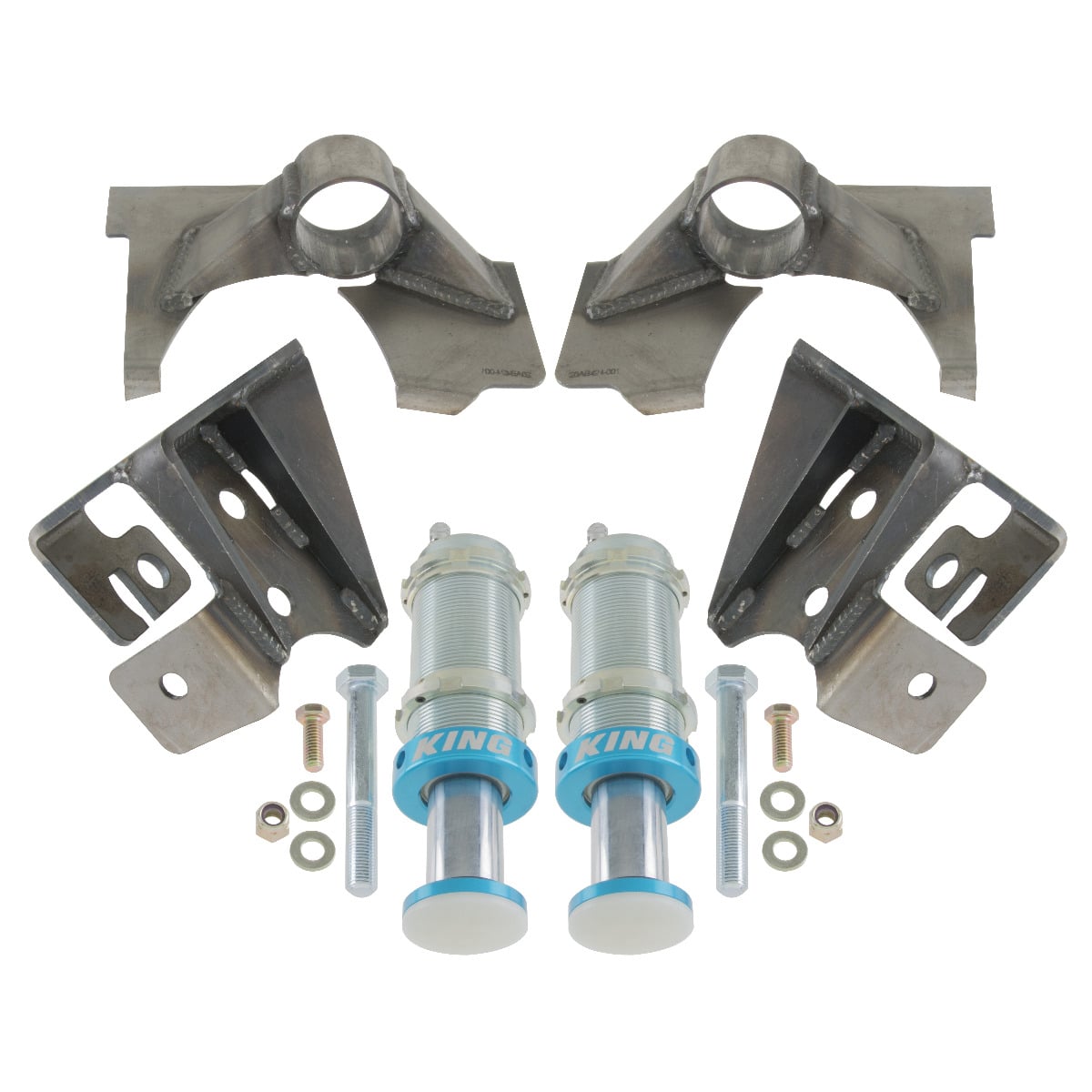

• Upper frame bracket is weld-on; lower strike pad is bolt-on. Detailed instructions and included hardware simplify installation
• Made in the USA with a 90-day limited warranty

King bump stops are fully rebuildable, serviceable, and tunable, making them a long-term performance investment for serious off-road builds. The precision component fit, proven valving configuration, and advanced seal technology combine to create a durable bump stop that controls suspension travel under the most demanding conditions.
