BorgWarner 12809880000 EFR 9180 High-Performance Turbocharger T4 .92 A/R

Manufacturer

Part Number

12809880000
Sale Price

$2,717.08

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

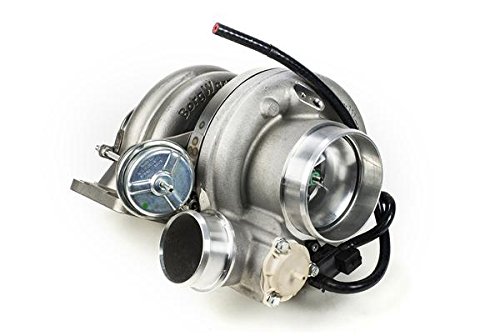

The BorgWarner EFR 9180 is the flagship model in the acclaimed Engineered for Racing (EFR) series, representing the most advanced high-performance turbocharger available for the automotive aftermarket. This powerhouse unit features a 91mm outer diameter compressor with a 68mm inducer and delivers an exceptional 94-95 lb/min maximum airflow, making it capable of supporting 600-1000 horsepower in single turbo applications or 1000-1700+ horsepower in twin turbo setups.

Advanced Engineering Features:

  • Gamma-Ti (Titanium Aluminide) turbine wheel - approximately 50% lighter than conventional turbine wheels for reduced inertia and faster spool
  • Dual ceramic ball bearing cartridge assembly with metal cage for superior thrust capacity and durability
  • Forged milled compressor wheel (FMW) with extended tip technology for maximum efficiency
  • Investment cast stainless steel turbine housing for enhanced durability and corrosion resistance
  • Integrated compressor recirculation valve (CRV) built-in bypass valve functionality
  • Boost control solenoid valve (BCSV) for precise boost management
  • Compressor cover with speed sensor mounting provisions
  • Water-cooled bearing housing (water cooling highly recommended)

Specifications:

  • Compressor wheel: 68mm inducer / 91mm exducer, 7-blade design
  • Turbine wheel: 80mm exducer / 73mm inducer
  • Frame size: B2
  • Turbine housing: T4 twinscroll flange with .92 A/R
  • Wastegate: Internal wastegate (IWG)
  • Application range: 600-1000 HP per turbo

This turbo is designed as a universal fitment unit and requires custom installation provisions. The T4 .92 A/R twinscroll configuration with internal wastegate offers excellent spool characteristics and high-flow capability, making it ideal for serious enthusiasts and racers seeking four-digit horsepower with responsive boost delivery.
