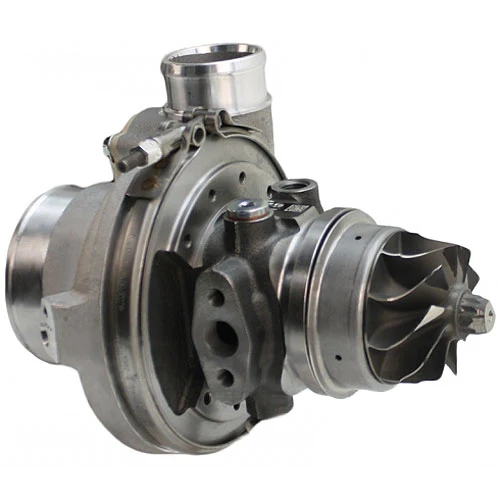

BorgWarner 179354 EFR 7064 SuperCore Ball Bearing Turbo Assembly

The BorgWarner EFR 7064 SuperCore is a high-performance turbocharger center section assembly designed for drift, road racing, and street applications. This SuperCore configuration includes the compressor and center housing assembly with advanced ball bearing technology, delivering exceptional spool characteristics and power output in a compact package.

Key Features:

• 70mm forged milled compressor wheel with 52mm inducer diameter and extended tip technology
• Low inertia 64mm Gamma-Ti (titanium aluminide) turbine wheel reduces lag by approximately 50%
• Dual ceramic ball bearing cartridge with metal cage for minimal friction and rapid response
• Integrated Compressor Recirculation Valve (CRV) eliminates need for external blow-off valve
• Boost Control Solenoid Valve (BCSV) included with assembly
• Water-cooled bearing housing with 14mm banjo bolt provisions (water cooling recommended)
• Speed sensor mounting provision on compressor cover (sensor sold separately)
• 3.5-inch compressor inlet and 2.0-inch outlet
• Capable of supporting 300-550 horsepower in single turbo applications
• Maximum boost capability of 45+ PSI
• Maximum airflow of 56 lb/min

What's Included:

• Center rotating assembly with dual ceramic ball bearings
• Compressor housing with integrated CRV
• Boost control solenoid valve
• Iron bearing housing (B2 frame)

Not Included (Sold Separately):

• Turbine housing assembly
• Turbine housing clamp plate hardware
• Wastegate components and actuator
• Speed sensor
• Oil and coolant fittings

The SuperCore assembly allows builders to select their preferred turbine housing configuration (T3 or T4, various A/R ratios) for optimal performance in their specific application. The advanced Gamma-Ti turbine wheel material and forged milled compressor wheel technology represent the pinnacle of turbocharger engineering for racing and high-performance street use.
