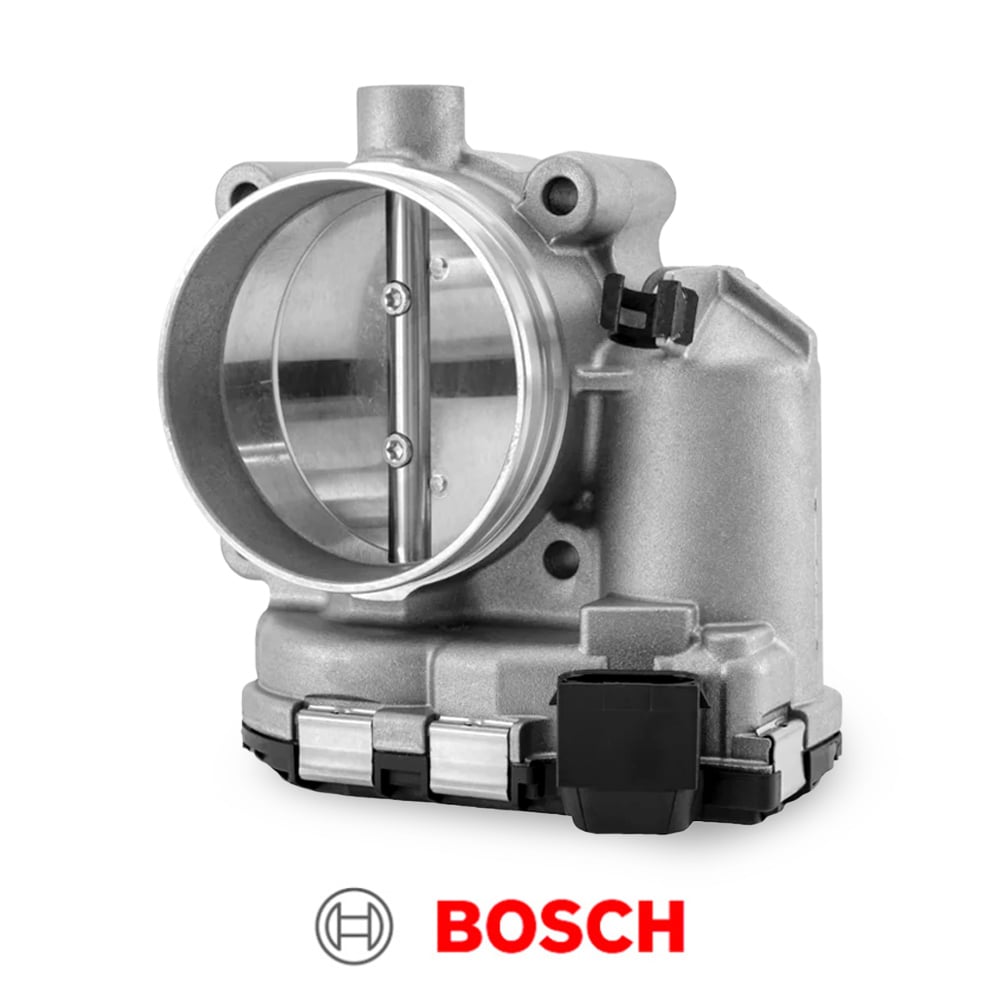

Bosch 0280750156 Electronic Throttle Body Drive-By-Wire - 68mm

The Bosch 0280750156 is a professional-grade 68mm electronic throttle body designed for high-performance and motorsport applications. Manufactured in Germany by Bosch Motorsport, this drive-by-wire (DBW) throttle body delivers precise throttle control and exceptional airflow capacity for demanding engine builds.

Key Features:

• 68mm bore diameter for excellent airflow capacity
• Electronic drive-by-wire actuation with dual redundant throttle position sensors
• Cast aluminum construction for durability and weight reduction
• Integrated TPS (Throttle Position Sensor) included
• Built-in idle air position control
• Wide operating temperature range: -40 to 284°F (-40 to 140°C)
• Supply voltage: 6 to 16V with sensor voltage of 5 ± 0.2V
• Dual output signals: 0 to 5V and 5 to 0V for 0 to 90 degrees rotation
• Maximum generator current under 10.0A

This throttle body is designed to control fresh air delivery for spark ignition engines when used with an electronic throttle control (ETC) system. Compatible with flex-fuel, CNG, and LPG applications when fuel is injected downstream of the throttle body. Requires an aftermarket ECU with drive-by-wire capability for proper operation. OEM Ford part number cross-reference: 1R1E9E926AA.
