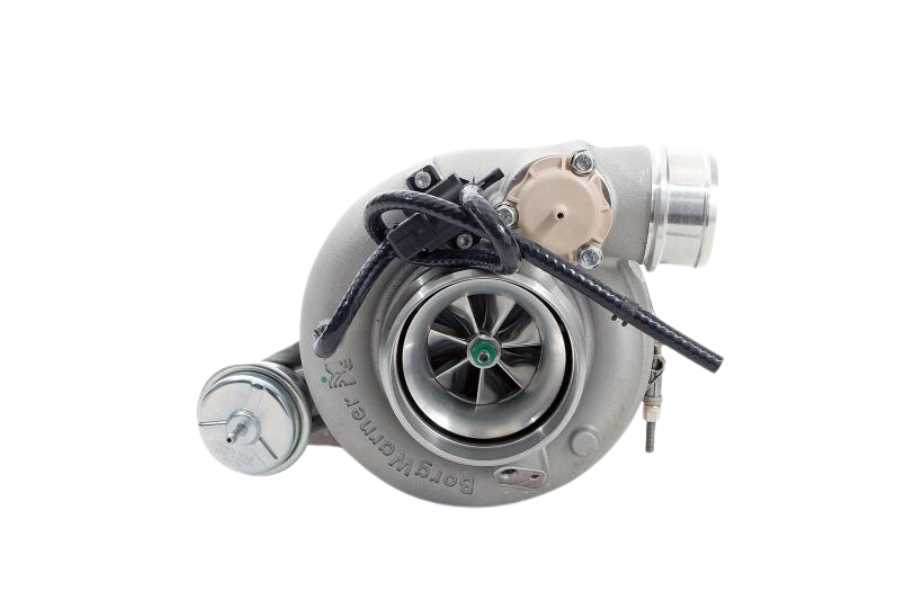

Borg Warner 12919097001 EFR 9180 SuperCore Aluminum Bearing Housing

The Borg Warner 12919097001 is an EFR 9180 SuperCore assembly (also called a turbo core or CHRA) with an aluminum bearing housing on a B2 frame. It is built for motorsport and tuned engines, and is sold as a core only so you can fit it to your own turbine housing.

Key Features:

• Gamma-Ti turbine wheel
• Forged milled compressor wheel with extended tip technology
• Dual ceramic ball bearing assembly with metal cage
• Integrated compressor recirculation valve (CRV)
• Boost control solenoid valve (BCSV)
• Compressor cover with speed sensor mounting provisions

Specifications:

• Compressor wheel OD: 91 mm
• Compressor wheel inducer: 68 mm
• Turbine wheel OD: 80 mm

Please note: the aluminum bearing housing requires cooling. The turbine housing, clamp plate hardware, wastegate and actuator are not part of the SuperCore. Optional hardware such as a speed sensor, turbine gaskets and V-bands, oil drain gaskets and fitting, and actuators and brackets is available separately.
