JE Pistons 295744 Forged Piston Set Alloy Inverted Dome/Dish Bore - 2618 3.268 In 4-Cylinder

The JE Pistons 295744 is a premium forged piston set engineered for the Audi/Volkswagen 1.8T 20V four-cylinder engine. Featuring a 3.268-inch (83.00mm) bore and an inverted dome/dish crown design, this kit is purpose-built for 4-cylinder applications requiring maximum reliability under extreme performance conditions.

These pistons are engineered for extreme applications, up to and including professional competition, where higher compression ratios, high boost, or heavy nitrous usage necessitate the higher tensile strength of 2618 aluminum alloy.

Key Features:

• Forged in the USA using 2618 aluminum, yielding the high tensile strength needed for high-demand performance applications.
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin.

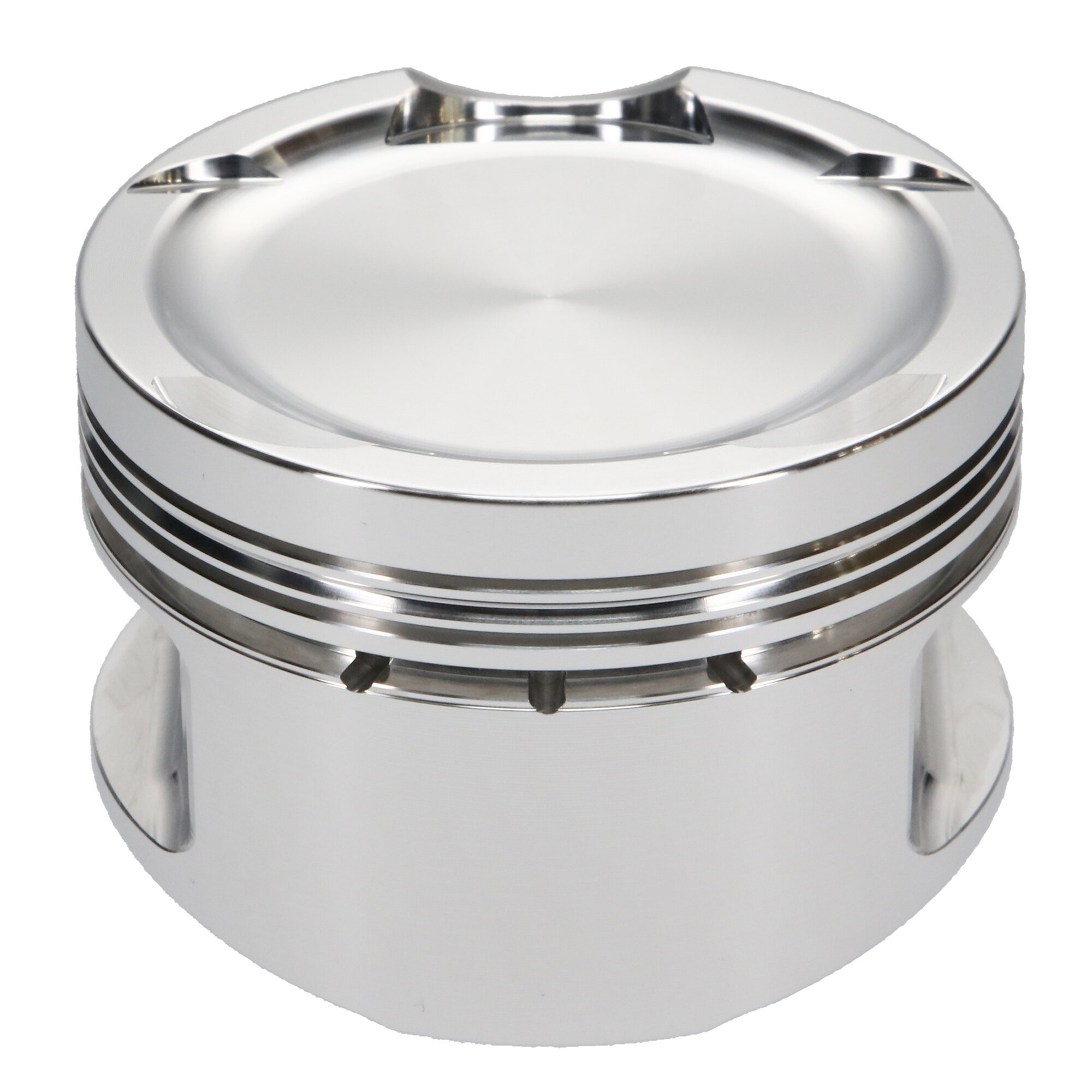

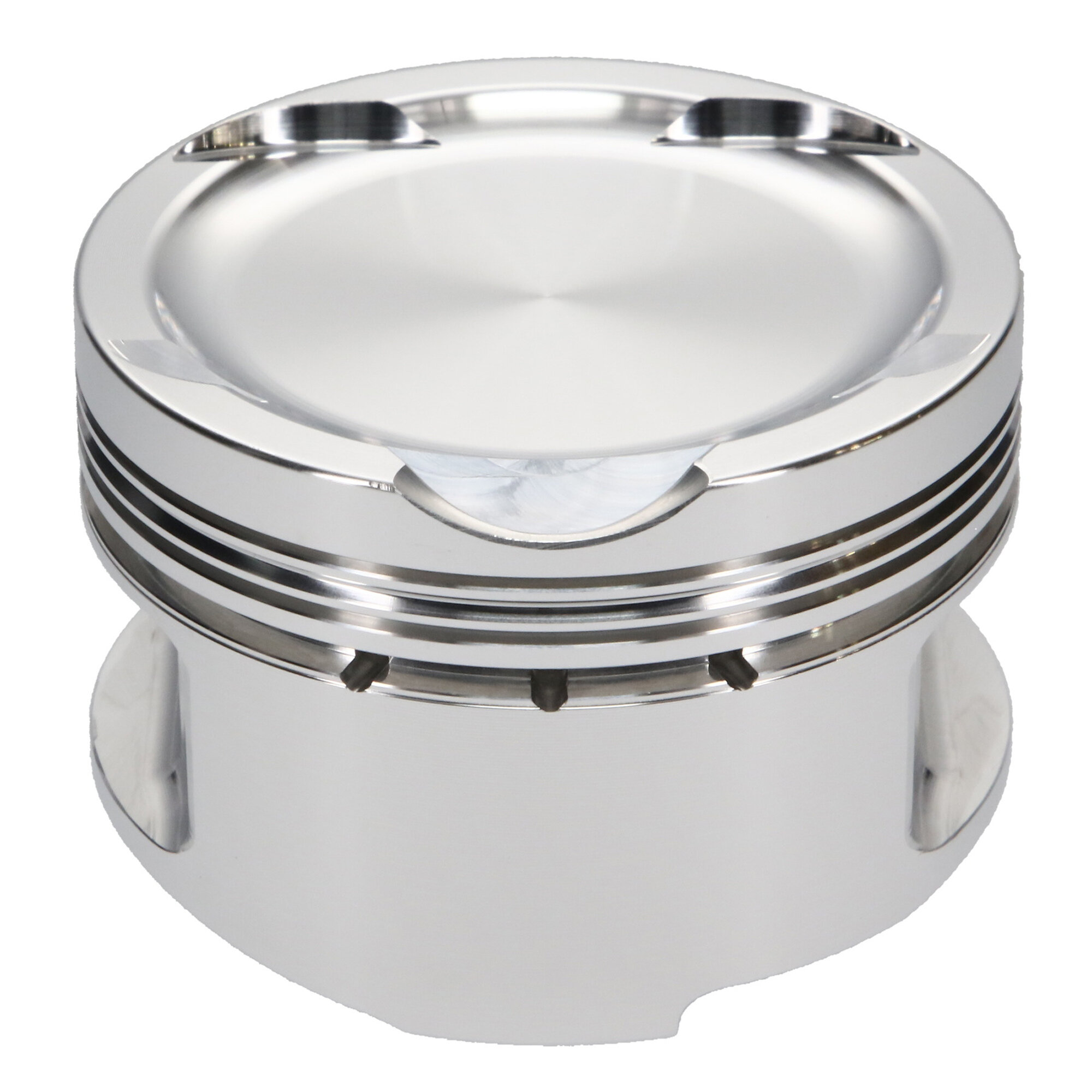

• Domed or dished tops require no deburring or preparation and feature smooth-flowing radii for excellent flame travel.
• Compression Height: 1.286 in. | Pin Diameter: 0.787 in. (20.00mm) | Dish Volume: -12.90cc | Compression Ratio: 8.50:1
• Top compression ring thickness: 0.0400 in. | Second compression ring thickness: 0.0480 in. | Oil ring thickness: 0.111 in.
• Wrist pin style is floating with a chamfered wall; wall thickness is 0.180 in. Piston pin length is 2.250 in. and average piston weight is 310 grams.

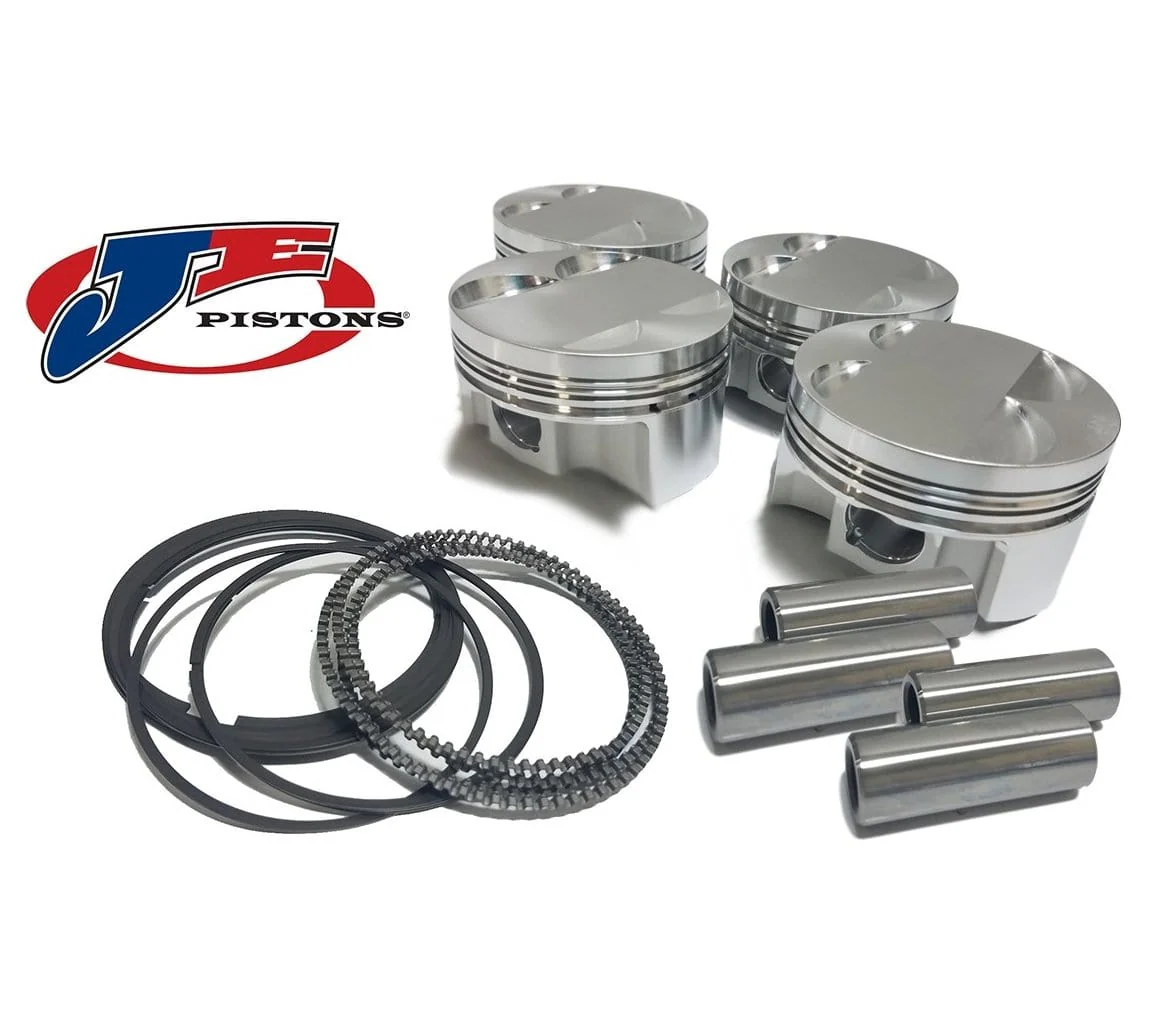

• Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings.
• OEM cross-reference part numbers: 06B-107-065-N / 06B107065N. Replacement single piston available as part number 295744S.

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import, and sport compact applications — engineered, forged, and machined 100% in the USA.
