McLeod 6932-03HD RXT 1200 Twin Disc Clutch Kit 1-1/16 x 10 Spline Metric Ring Ford 4.6L

The McLeod RXT 1200 HD Twin Disc Clutch Kit (6932-03HD) is a heavy-duty, high-horsepower street/strip clutch solution rated to handle up to 1,200 crank horsepower. Featuring a higher clamp load than the standard RXT series, this kit delivers the holding power needed for serious performance builds while retaining excellent street manners and a near-stock pedal feel.

Built around a 9.687-inch diameter disc and a 1-1/16" x 10-spline input shaft, this kit uses McLeod's exclusive patented metric adapter ring design, allowing the twin disc assembly to bolt directly to your existing supplied flywheel — no dedicated flywheel required in most applications. This makes it a cost-effective and plug-and-play upgrade for street/strip enthusiasts.

Key Features:

• Rated to handle up to 1,200 crank horsepower
• Twin disc design with higher clamp load than standard RXT kits
• Ceramic-lined clutch discs for smooth engagement and strong holding power
• Stock-like pedal feel — no harsh engagement or excessive effort
• Metric adapter ring (McLeod Racing exclusive patented design) bolts to your existing flywheel
• Disc outer diameter: 9.687 inches
• Input shaft: 1-1/16" x 10-spline
• Blanchard-ground floater plate with strap drive to minimize noise
• 90-day manufacturer warranty
• Made in the USA

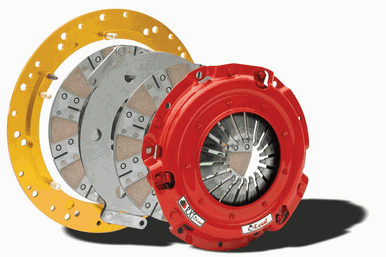

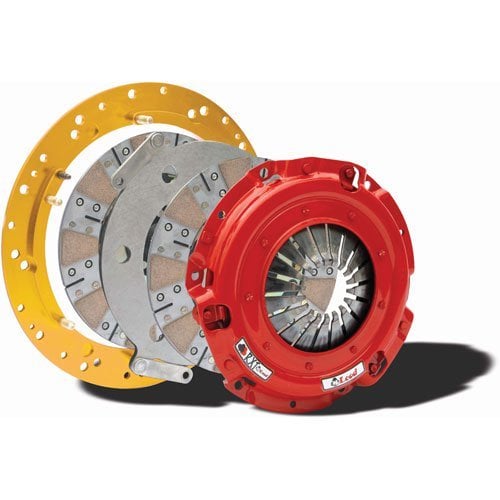

Kit Includes: Pressure plate, two ceramic friction discs, floater plate, adapter ring, and pilot tool.

Important Fitment Note: This clutch requires a flywheel with a crank relief of 6.250" or smaller for correct disc-to-flywheel contact. Some factory flywheels with a larger crank relief may not be compatible — a replacement lightened steel or billet aluminum flywheel is recommended for optimal performance.

The McLeod RXT 1200 HD is the ideal choice for the serious street/strip driver who demands maximum power capacity without sacrificing daily driveability. Drive to the track, make your passes, and drive home — all with one clutch.
