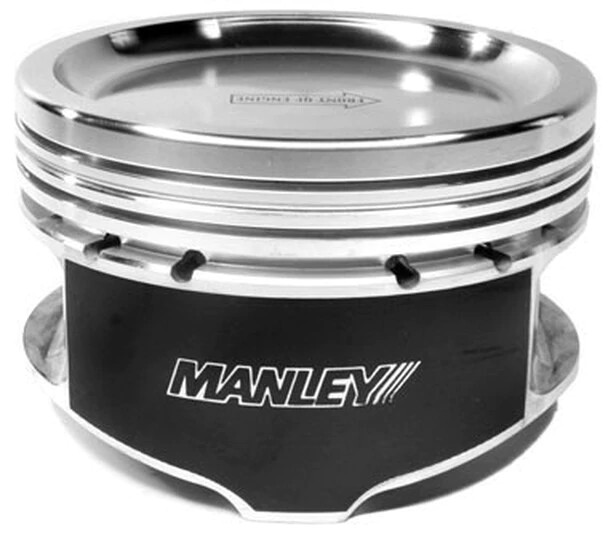

Manley 560470C-8 Platinum Series Forged Piston Gen V Bore Dish - Set LT1 LT4 4.070 20cc

Manufacturer

Part Number

560470C-8
Black Friday Price

$889.40

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 560470C-8 Platinum Series forged piston set is engineered for high-performance GM Gen V LT1 and LT4 direct-injected engines. These premium pistons are designed for enthusiasts and engine builders who demand superior strength and reliability in demanding applications.

Key Specifications:

  • Bore: 4.070 inches (+0.005" oversize)
  • Stroke compatibility: 4.000 inches
  • Rod length: 6.125 inches
  • Compression height: 1.115 inches
  • Piston head volume: -20cc dish design
  • Compression ratio: 10.5:1 with 59cc LT1 chambers, 9.8:1 with 65.5cc LT4 chambers
  • Piston and pin weight: 415 grams
  • Wrist pin: 0.927" diameter floating pin, 2.300" length x 0.170" wall
  • Ring package: 1.2mm, 1.2mm, 3.0mm

Premium Construction Features:

  • 2618 high-strength aluminum alloy forgings for exceptional durability
  • Premium chrome moly wrist pins (Standard Duty Series)
  • Moly-coated skirts for reduced friction and wear
  • Offset wrist pin design for optimized performance
  • Machined for reluctor wheel clearance on direct-injection engines
  • Cam and barrel skirt profiles for maximum power with minimal cylinder wall wear
  • Exacting ring groove to skirt squareness for superior ring seal
  • Lateral gas ports and pressure balance grooves

Manley's Platinum Series pistons feature precision engineering with unique fixturing that ensures ultimate ring groove to skirt squareness, resulting in enhanced ring seal and increased horsepower. These pistons are compatible with GM Gen V LT1 and LT4 engines and are trusted by professional engine builders worldwide. Set includes 8 pistons with wrist pins and locks.

Products specifications

Piston Quantity

8

Weight

415

Make

Chevrolet

Bore Diameter

4.070

Compression Height

1.115

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-20.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Title

Manley Piston Set, PIST-4.070/1.115CD/20ccDISH
