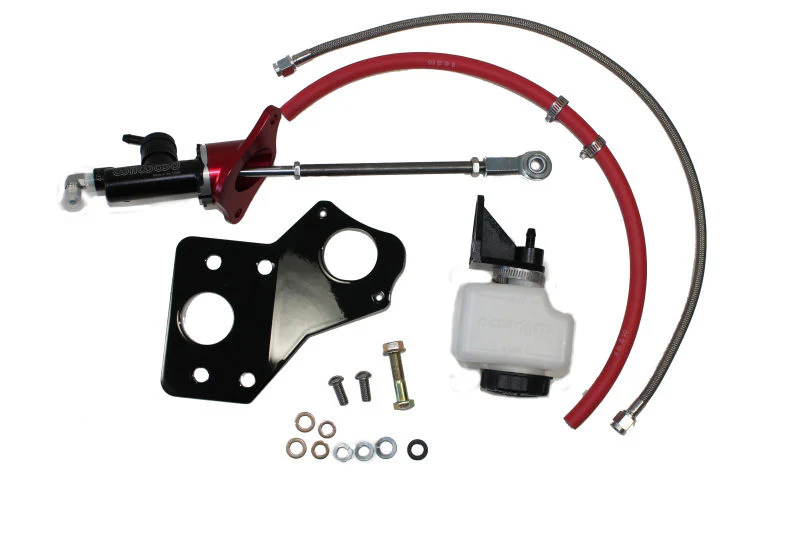

McLeod 1434005QD Direct-Fit Hydraulic Clutch Conversion Kit with GM QD Fitting

The McLeod 1434005QD is a direct-fit hydraulic clutch conversion kit designed for 1970–1981 GM F-Body applications. It is an ideal solution for vehicles with aging or worn mechanical clutch linkage, or for builds requiring additional firewall clearance due to an engine swap or driveline upgrade. McLeod engineered this kit with high-quality components for straightforward installation and long service life.

Key Features:

• Self-Adjusting Hydraulic Bearing Compatibility: Once installed, the system allows the release bearing to automatically self-adjust as the clutch disc wears over its lifecycle — eliminating the need for manual clutch adjustments every 4–6 months
• Firewall-Mount Design: A direct-fit firewall kit designed to work with 1970–1981 Camaro manual pedal box assemblies

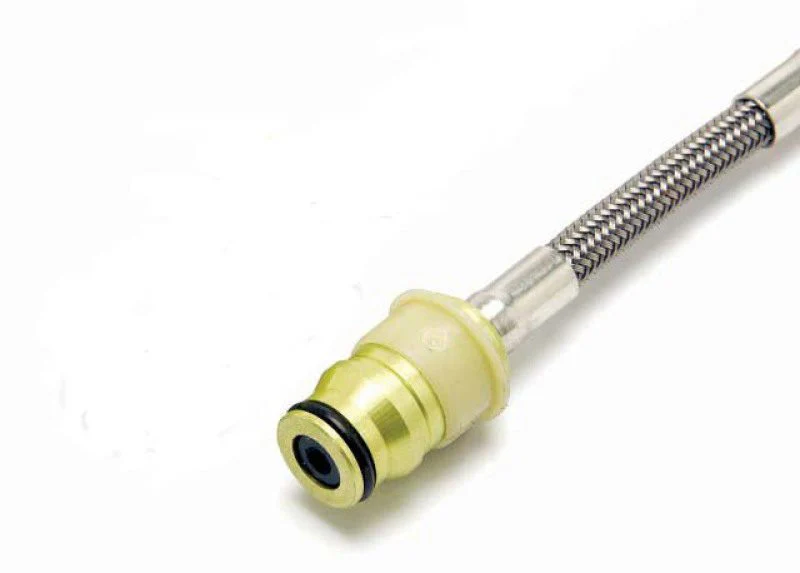

• GM QD Fitting Included: Features a GM quick-disconnect (QD) hydraulic line fitting for a clean, secure connection
• Includes Master Cylinder and Hydraulic Line: Everything needed for the firewall portion of the hydraulic conversion is included in the kit
• Compatible with McLeod 1300 & 1400 Series Internal Hydraulic Bearings: Designed to work with McLeod's internal hydraulic release bearings (sold separately)
• Cast Aluminum Construction: Master cylinder features a cast aluminum body with a black finish for durability and underhood aesthetics

Important Notes:

• This is a firewall kit only — the hydraulic release bearing must be purchased separately
• Intended for use with McLeod Racing 1300 and 1400 series internal hydraulic bearings
• Designed for use with 1970–1981 Camaro manual pedal box assemblies only

The McLeod 1434005QD makes converting from a mechanical clutch linkage to a modern hydraulic system straightforward and reliable, delivering consistent clutch feel and reduced maintenance for street and performance builds alike.
