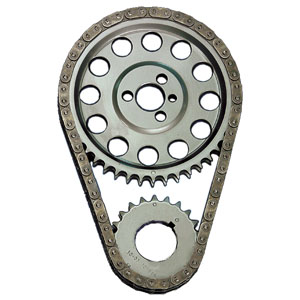

Cloyes 9-3610TX9Z Race Billet True Roller Timing Set Big Block Chevy 9-Keyway

(Chevrolet Camaro 1967-72, Corvette 1965-74, Impala 1965-76, Malibu 1965-67, 1973-75, C1500 1990-93, Chevelle 1965-73, Blazer 1973-74 + 100 more models)

Manufacturer

Picture for manufacturer Cloyes

Part Number

9-3610TX9Z
12 reviews
Sale Price

$266.24

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Cloyes 9-3610TX9Z Race Billet True Z-Racing timing set is engineered for serious racing applications, featuring track-proven billet construction with induction heat-treated sprockets hand-matched to a high-strength heat-treated chain. This premium timing set is designed for Chevrolet Big Block Mark IV engines (396-454 cubic inches).

Key Features:

  • Z-chain delivers 33 percent more overall strength than premium chains, making it ideal for extreme builds and racers demanding uncompromising performance
  • Billet steel sprockets machined on CNC equipment and induction-hardened through Cloyes' multi-stage heat treat process
  • 3-piece set includes billet steel gears and 9-keyway crank sprocket for multiple valve timing adjustments
  • Premium True Roller chain with 0.250-inch diameter rollers that are cold-rolled and hardened to exacting standards
  • Fine blanked links reduce stress risers, minimizing fractures under severe load
  • Press-fit center links improve load share by reducing load spikes on individual components
  • Includes needle thrust bearing for proper camshaft support
  • Hand-matched at the factory to qualify center distance and runout for optimal performance

The Z-Racing Series is the choice for extreme engine builds that demand no compromise. Note: This timing set will not fit factory roller cam applications. Designed for race and high-performance street applications on 1965-1995 Chevrolet Big Block Mark IV engines.

Products specifications

Fits

Chevrolet Camaro 1967-72, Corvette 1965-74, Impala 1965-76, Malibu 1965-67, 1973-75, C1500 1990-93, Chevelle 1965-73, Blazer 1973-74, C10 Pickup 1968-74, Caprice 1966-76, C10 1975-81, El Camino 1966-75, Monte Carlo 1970-75 + 95 more models

good

Quick and easy

called to ask about fitment. first operator hung up on me after waiting 10 min on hold. called back and hector was able to help me with my order.

Really hard to find plugs - autoplicity had over 100 "in-stock" - great price also.

I like that I could use my Amazon account

easy to buy

the product reviews all seem to be reviewed of autoplicity's service instead of the item being viewed. either way, the shocks ordered were the right ones w/ all the parts w/ it. autoplicity's item descriptions could be a little more clear and/or explicit

Fast / Easy Straightforward

Received Monroe MA770 air shock, fit just wonderful and the installation was easy.

So far, so good. Best price I found. Very reasonable shipping. Parts were loose packed and rattled around a bit but nothing damaged. The hole for the EGR in the header was just a small hole and I had to drill it out. There were no instructions or any do

Great place to do business with! Exactly what I ordered for a great price and even showed up 3 days early. You can not ask for anymore than this!!!!!

I ordered a Rhino stainless steel exhaust tip for my 2009 Chev Silverado from Autopicity. It took approximately 1 week from when I placed my order until I received it. It arrived in excellant shape and was exactly as indicated. The part was very good quality and easy to install. It took me approximately 15 minutes to install, partly because I wanted to make sure of the appearance and location. I was very pleased with the service I received from Autoplicity and would definitely order again from Autoplicity.
