Carter P77036M Fuel Pump Module Assembly

(2010-2013 Chevrolet Silverado 1500; 2012-2013 GMC Yukon XL 1500; 2010-2013 GMC Sierra 1500; 2021-2023 Ford F-150)

Part of: Carter Fuel Pump Module Assembly

Other options in this family: Carter P75036M Carter P76267M Carter P74757M Carter P74770M Carter P76065M

Manufacturer

Picture for manufacturer Carter

Part Number

P77036M
12 reviews
Sale Price

$240.60

In Stock (8)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

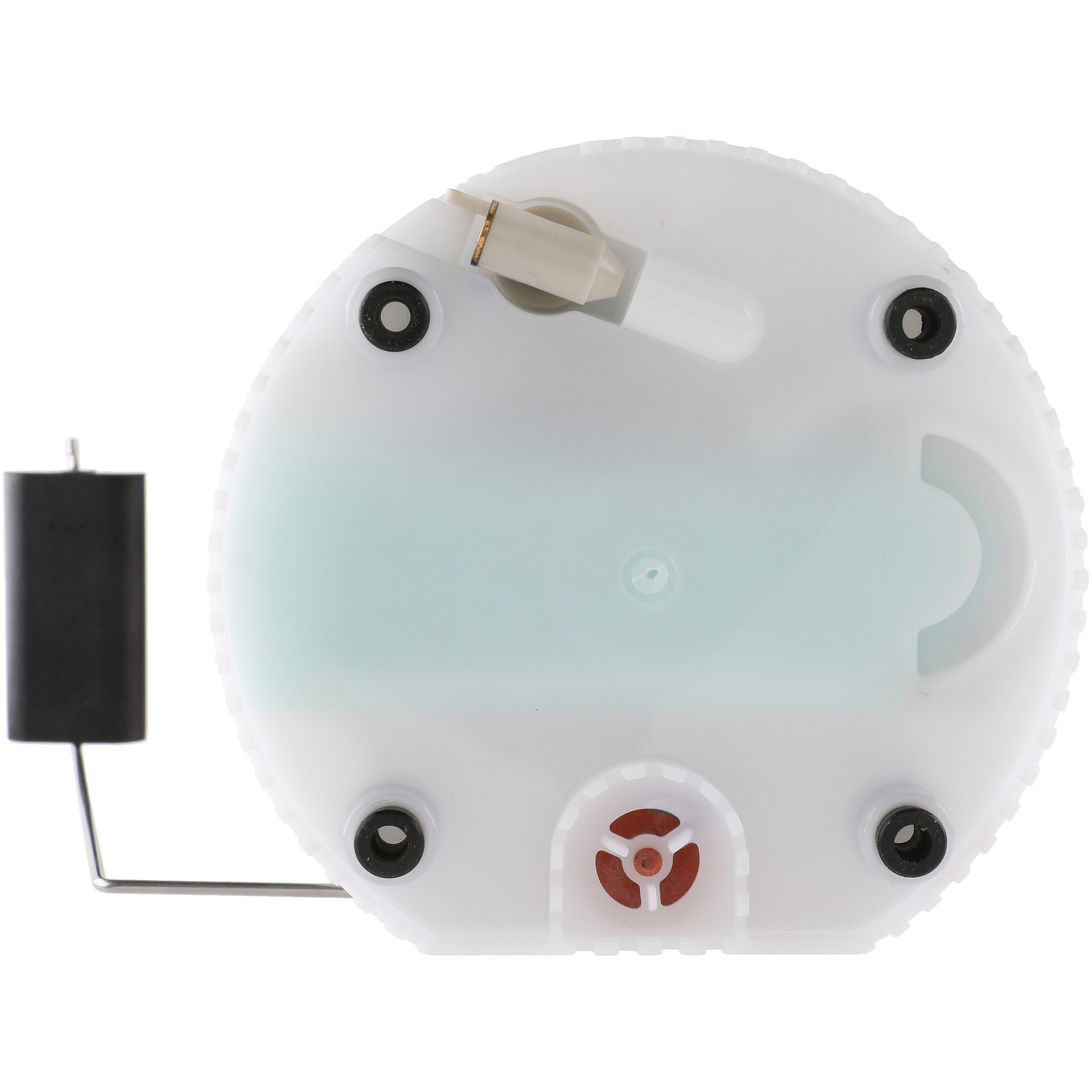

The Carter P77036M is a complete fuel pump module assembly engineered to deliver reliable fuel system performance and direct-fit installation. This assembly combines the fuel pump, fuel level sending unit, and mounting hardware into a single integrated module for simplified replacement.

Key Features:

  • Complete module assembly includes fuel pump, strainer, float, and wiring harness
  • OE-equivalent fit, form, and function for precise compatibility
  • Premium quality construction for dependable fuel delivery and long service life
  • Factory-style connectors ensure proper electrical connection
  • Fuel level sending unit provides accurate gauge readings
  • Direct replacement design simplifies installation process

Carter Fuel Systems is a trusted name in fuel delivery components, offering engineering solutions that meet or exceed original equipment specifications. This fuel pump module assembly is designed to restore proper fuel system operation and maintain optimal engine performance.

Products specifications

Fits

2010-2013 Chevrolet Silverado 1500; 2012-2013 GMC Yukon XL 1500; 2010-2013 GMC Sierra 1500; 2021-2023 Ford F-150

Minimum Pressure

60.0

Terminal Type

Blade

Connector Gender

FEMALE

Terminal Gender

MALE

Connector Shape

Oval

Mounting Hardware Included

No

Gasket Or Seal Included

Yes

Outlet Quantity

1

Grade Type

Regular

Universal Or Specific Fit

Specific

Wire Harness Included

No

Wire Quantity

4

Top Mount Diameter

128.8

Prop 65

No

Wire Gauge Measurement

16

Outlet Fitting Thread Size

3/8

Width

16.0

Outlet Type

Quick Connect

Housing Length

123.0

Housing Material

Acetal

Fuel Sending Unit Included

Yes

Wiring Harness Length

340.0

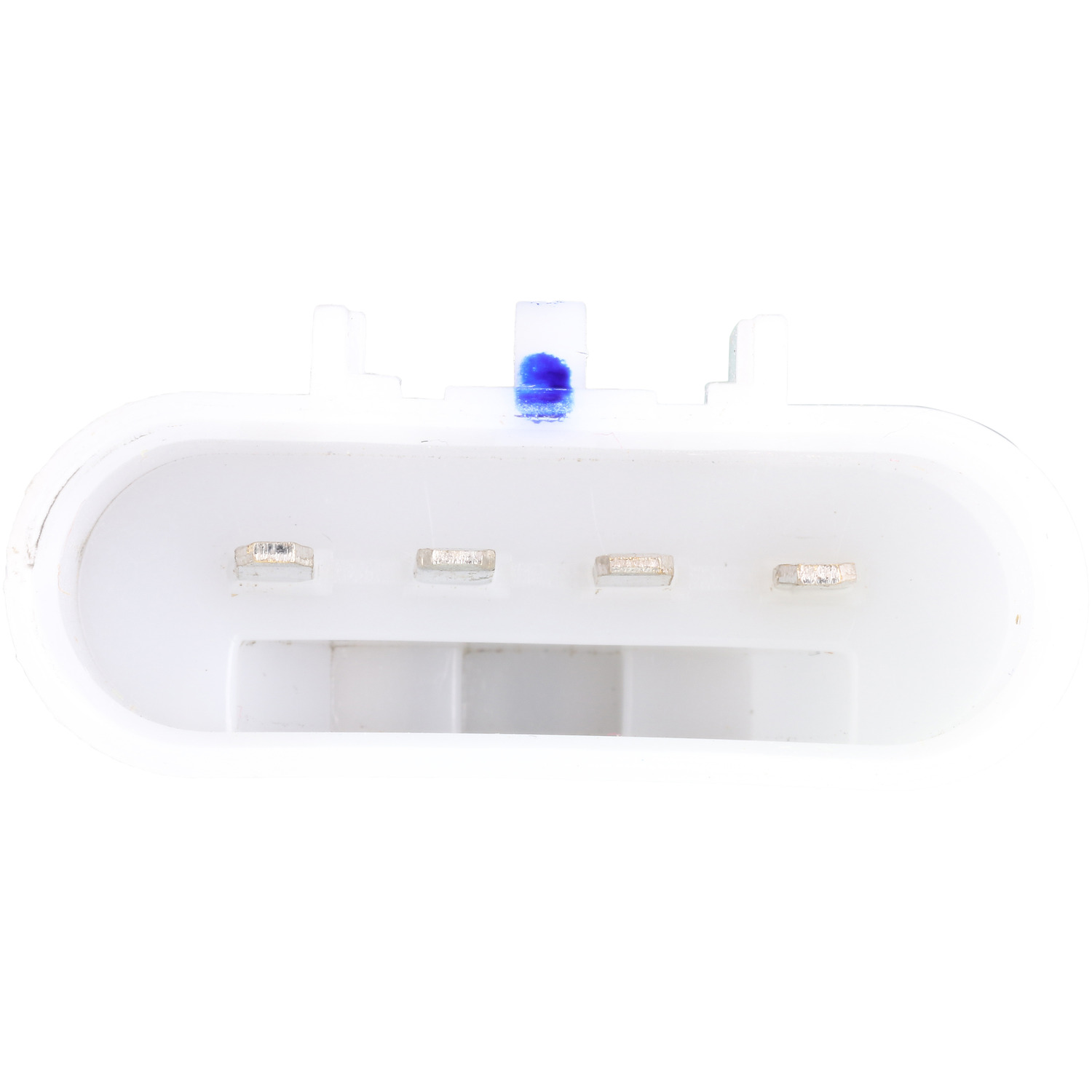

Connector Color

White

Inlet Type

Port

Terminal Quantity

4

Pump Type

Electric

Voltage

12V

Lock Ring Included

No

Minimum Flow Rating

40

Strainer Included

Yes

Fuel Filter Included

No

Housing Width

129

Height

123
