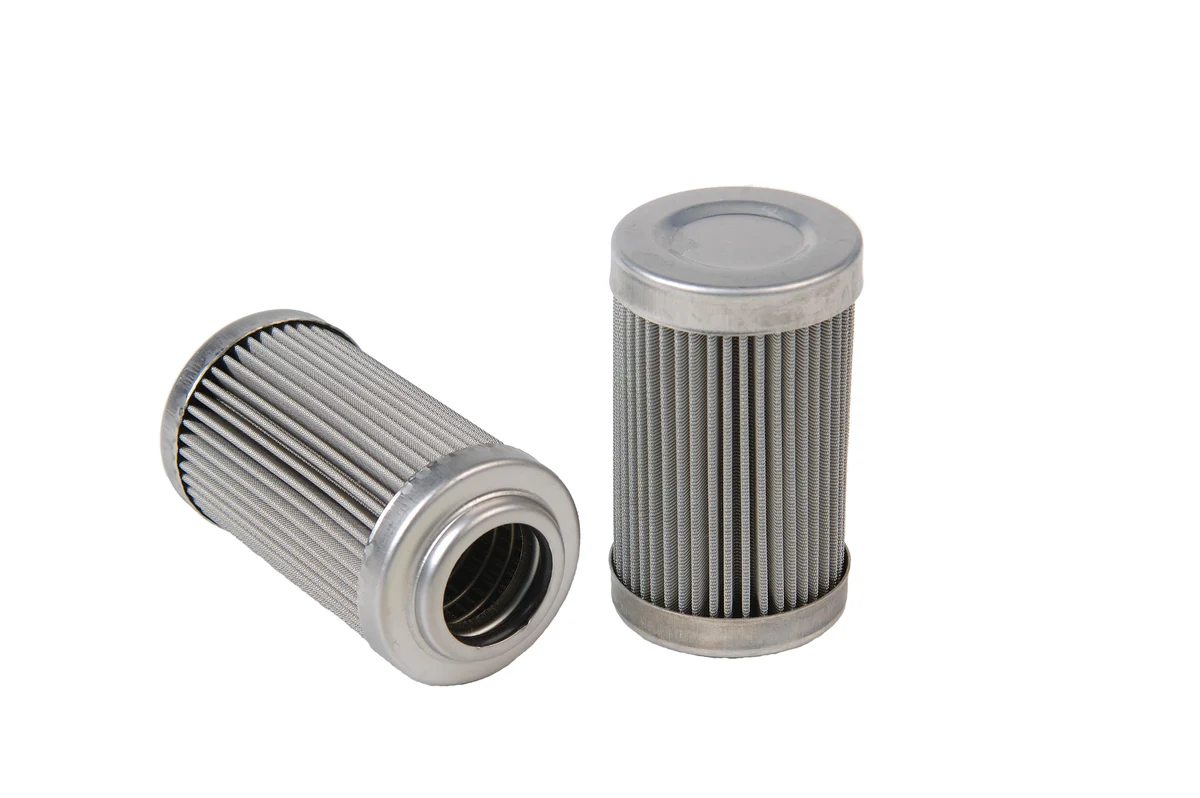

Big End Performance 12604 100-Micron Stainless Steel Fuel Filter Element

The Big End Performance 12604 is a replacement 100-micron stainless steel mesh fuel filter element designed for high-performance fuel systems. This cleanable filter element fits all 2-inch OD x 5-1/2-inch long ORB-10 filter housings and provides superior filtration for demanding automotive applications.

Key Features:

• Cleanable 100-micron stainless steel mesh construction for long service life
• Flow capacity up to 600+ GPH (10.00 GPM) with less than 1-PSI pressure drop
• Over 60 square inches of element surface area supports high flow rates
• Supports up to 5,000+ flywheel horsepower on forced induction gasoline applications
• Supports up to 4,000 HP on ethanol and 2,000 HP on methanol
• Compatible with gasoline, diesel, ethanol, and methanol fuels
• Includes new housing o-ring to reseal the filter assembly
• Ideal as a pre-pump filter for small to medium fuel pumps up to 2.5 GPM

Compatibility:

Direct replacement element for filter part numbers 12304, 12307, 12324, 12331, 12349, 12354, 12379, and 12389. Fits all ORB-10 filter housings with 2-inch outside diameter. Element dimensions: 2-15/16-inch length x 1-5/8-inch diameter with 7/8-inch opening.

Regular maintenance of your fuel filter element is critical to prevent reduced fuel flow, decreased engine performance, and potential damage to fuel pumps or engines. Annual inspection and cleaning or replacement is recommended, with more frequent service for severe duty or newly installed systems.
