ASA Electronics ACTF Diagnostic Test Fixture for RV Air Conditioners

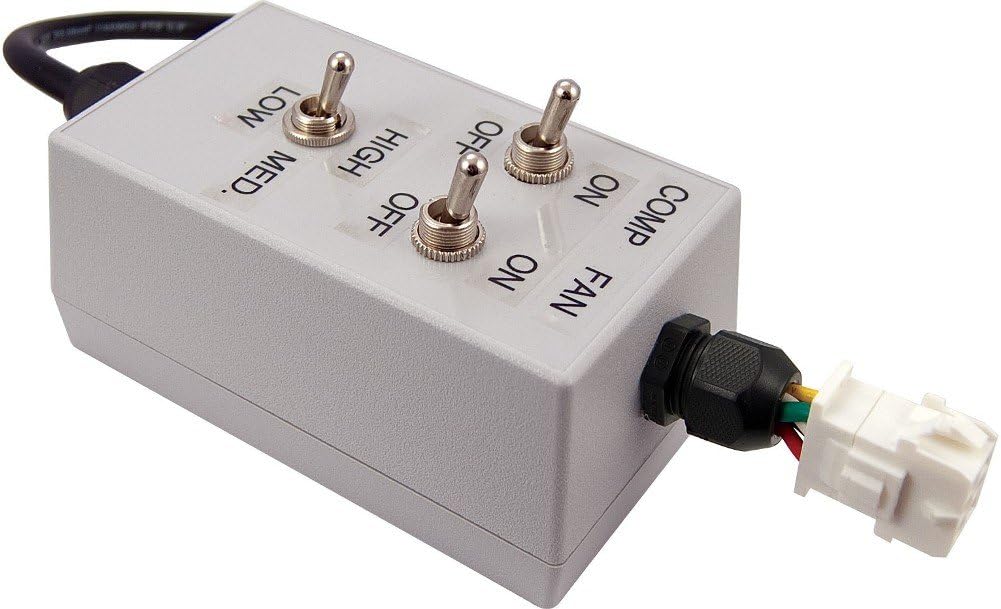

The ASA Electronics ACTF is a professional diagnostic test fixture designed to troubleshoot Advent Air and select Dometic RV air conditioning units. This diagnostic kit helps you pinpoint and fix AC problems without cutting your camping trip short, featuring three switches that let you independently test the compressor, the fan, and the fan speed.

Key Features:

• Three independent test switches for compressor, fan, and fan speed diagnostics
• Compatible with all Advent Air AC units and Dometic Brisk Air I and II models
• Works with cool-only units that have 6-pin harness connection with relay kit
• Includes 3-prong male plug that inserts into standard outlet
• Saves technician time and effort during AC troubleshooting
• Professional-grade diagnostic tool for dealers and service technicians

Compatibility Notes:

• Not compatible with heat-pump models (requires separate harness adapter #77-9125)
• Does not test Coleman AC units
• Designed specifically for cool-only air conditioning systems

This essential diagnostic tool allows RV technicians and owners to quickly isolate AC component failures, reducing troubleshooting time and ensuring accurate repairs. The simple three-switch design provides direct control over individual AC functions, making it easy to identify whether issues stem from the compressor, fan motor, or fan speed controls.
