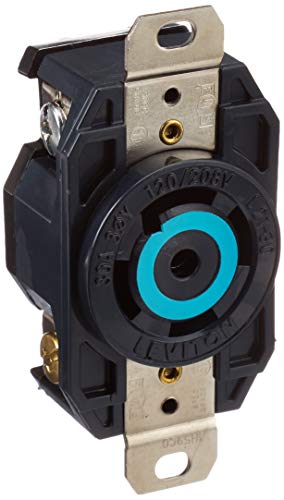

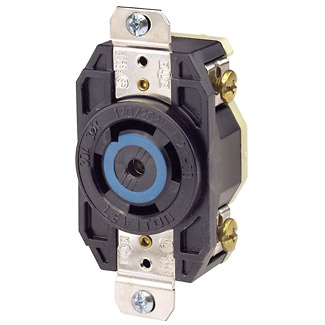

Leviton 2810 30 Amp 120/208V 3-Phase Locking Receptacle NEMA L21-30R

The Leviton 2810 is an industrial-grade 3-phase locking receptacle engineered for demanding commercial and industrial environments. This flush-mount receptacle features a 30 amp rating at 120/208 volts, configured as a 4-pole, 5-wire grounding device meeting NEMA L21-30R specifications.

Key Features:

• V-0-MAX construction with UL 94 V-0 flammability rating—the highest rating available for industrial locking receptacles
• Extra-thick 0.05 inch nickel-plated brass mounting strap for high-abuse applications
• One-piece 0.04 inch brass contacts with high copper content and nickel-plated clamp-type terminals
• Polybutylene terephthalate (PBT) thermoplastic body for impact resistance and durability
• Color-coded voltage rating on face for quick identification
• Back and side wire terminals accommodate 14-8 AWG wire
• Wide temperature range: -40°F to 140°F (-40°C to 60°C)
• Rated for 3 HP motor loads
• Product ID and NEMA rating permanently marked on device

This twist-lock receptacle provides reliable, secure connections that won't accidentally disconnect, making it ideal for industrial machinery, commercial equipment, and temporary power distribution applications. The grounded design ensures safe operation, while the locking mechanism maintains positive engagement under vibration and movement. Withstands 2000 volts dielectric strength testing.
