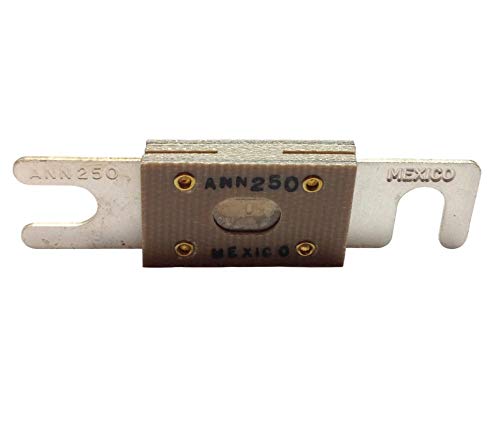

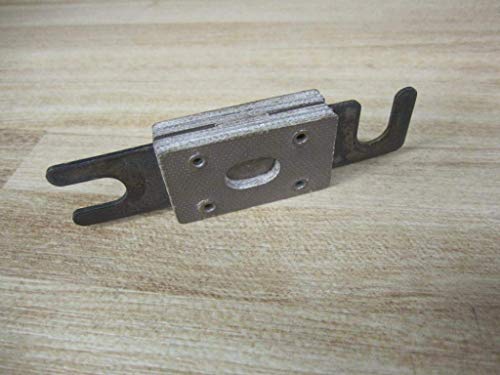

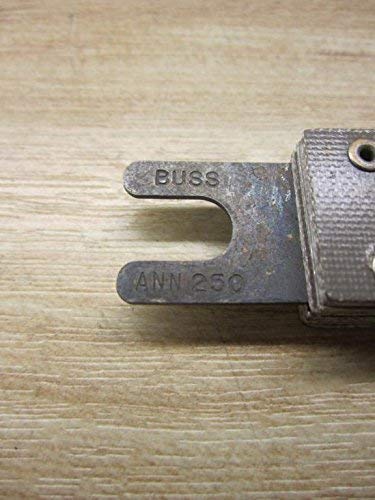

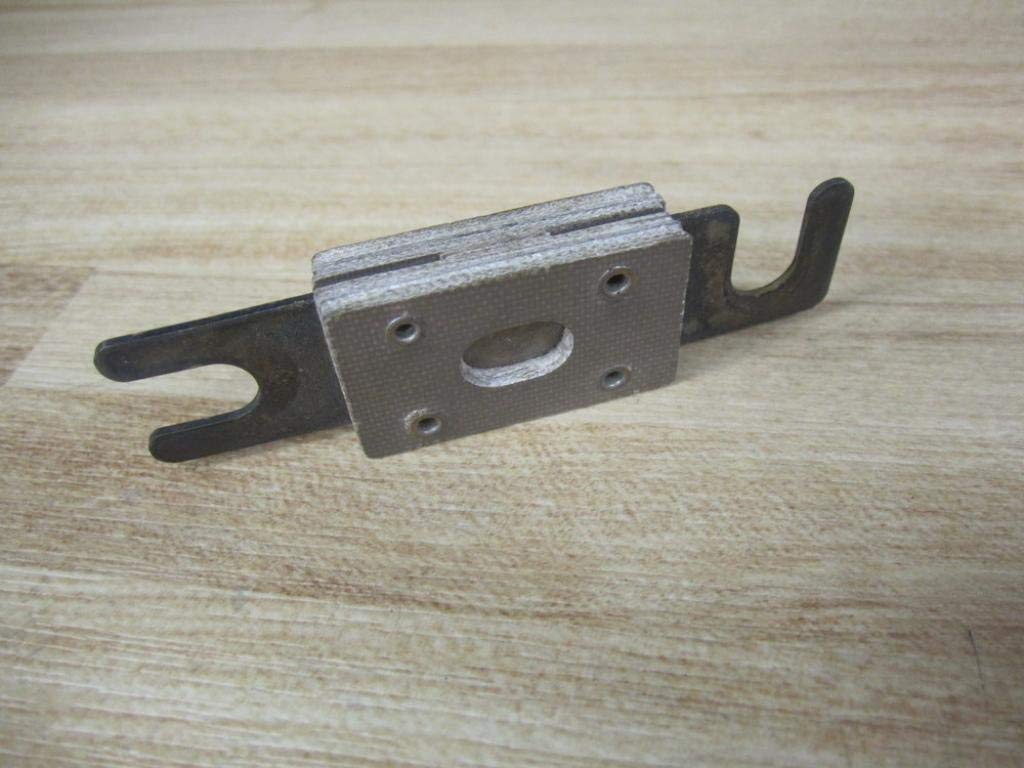

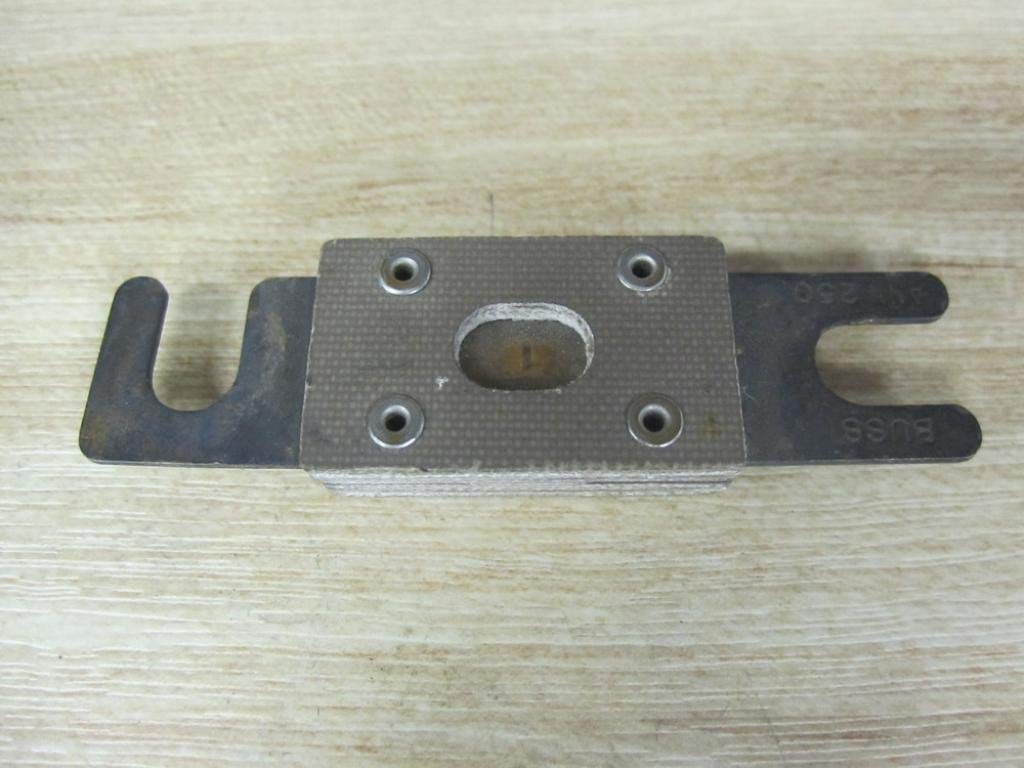

Bussmann ANN250 Very Fast Acting Circuit Limiter Fuse 250 Amp

Part of: Bussmann Very Fast Acting Circuit Limiter Fuse

Other options in this family: Bussmann ANN100

Manufacturer

Part Number

ANN250
Black Friday Price

$39.97

3 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Bussmann ANN250 is a very fast-acting circuit limiter fuse designed for high-amperage protection in battery-operated systems. This 250-amp fuse provides reliable overcurrent protection for charging systems in forklifts, golf carts, marine applications, and other low-voltage DC equipment.

Key Features:

  • 250 amp current rating for high-power applications
  • Dual voltage rating: 125 VAC / 80 VDC
  • Very fast-acting response for superior circuit protection
  • High interrupt rating: 2,500 AIC at 125 VAC, 2,700 AIC at 80 VDC
  • Compact design: 7/8" x 3-3/16" (22.2mm x 81mm)
  • Stud mount design with 5/16" terminal slots for secure installation
  • Single element construction with durable melamine body
  • Non-indicating blade-end design
  • UL Recognized and CSA Certified

Compatible with 200-400 amp controllers and mounts in standard Bussmann SFR fuse blocks. The ANN250 is interchangeable with Mersen/Ferraz Shawmut CNN250. Ideal for protecting battery charging systems, electric vehicle controllers, and industrial material handling equipment. Made in USA.
