IAP AC905547 PerTronix 1847A Ignitor Electronic Ignition Conversion Kit for Bosch 009/050 Distributors

The PerTronix Ignitor ignition kit is a drop-in points replacement kit for Bosch 009 and 050 distributors that eliminates the old points and condenser. This electronic ignition conversion module provides a maintenance-free solution that installs entirely under the distributor cap, earning it the nickname "stealth" ignition because of its quick installation and nearly undetectable presence under your distributor cap.

Key Performance Benefits:

• Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life with a 2:1 improvement over points in current fall time for increased coil output
• Trigger magnets spin with the rotor and operate a switching module that requires no external control box, immune to heat, oil, and debris
• Delivers more energy with greater timing accuracy
• No complicated wiring makes installation easy

Technical Specifications:

• 12V negative ground system with Hall effect trigger
• Operating voltage: 8V to 16V DC
• Temperature range: -50°F to 300°F
• RPM range: 0 to 15,000 RPM
• Requires a coil with 3 to 4.2 ohms of internal resistance

Important Notes:

• Not for use with solid core wires - suppression or spiral-wound spark plug wires required
• Not compatible with original fuel-injected engines
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-22)
• Compatible with most point-type coils; optimal performance with PerTronix Flame-Thrower 40,000 volt coil

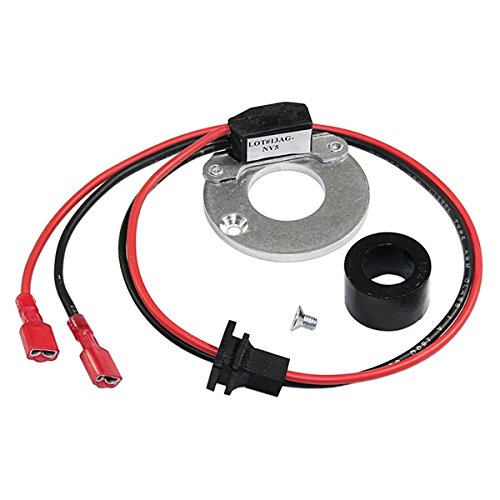

Kit comes complete with switching module, hardware, and instructions. Ignitor is an ideal choice for collector car restoration because it fits entirely under the distributor cap.
