$52.26
In Stock (23)
Usually delivered within 2 days
Part number: RS5301
Product Details

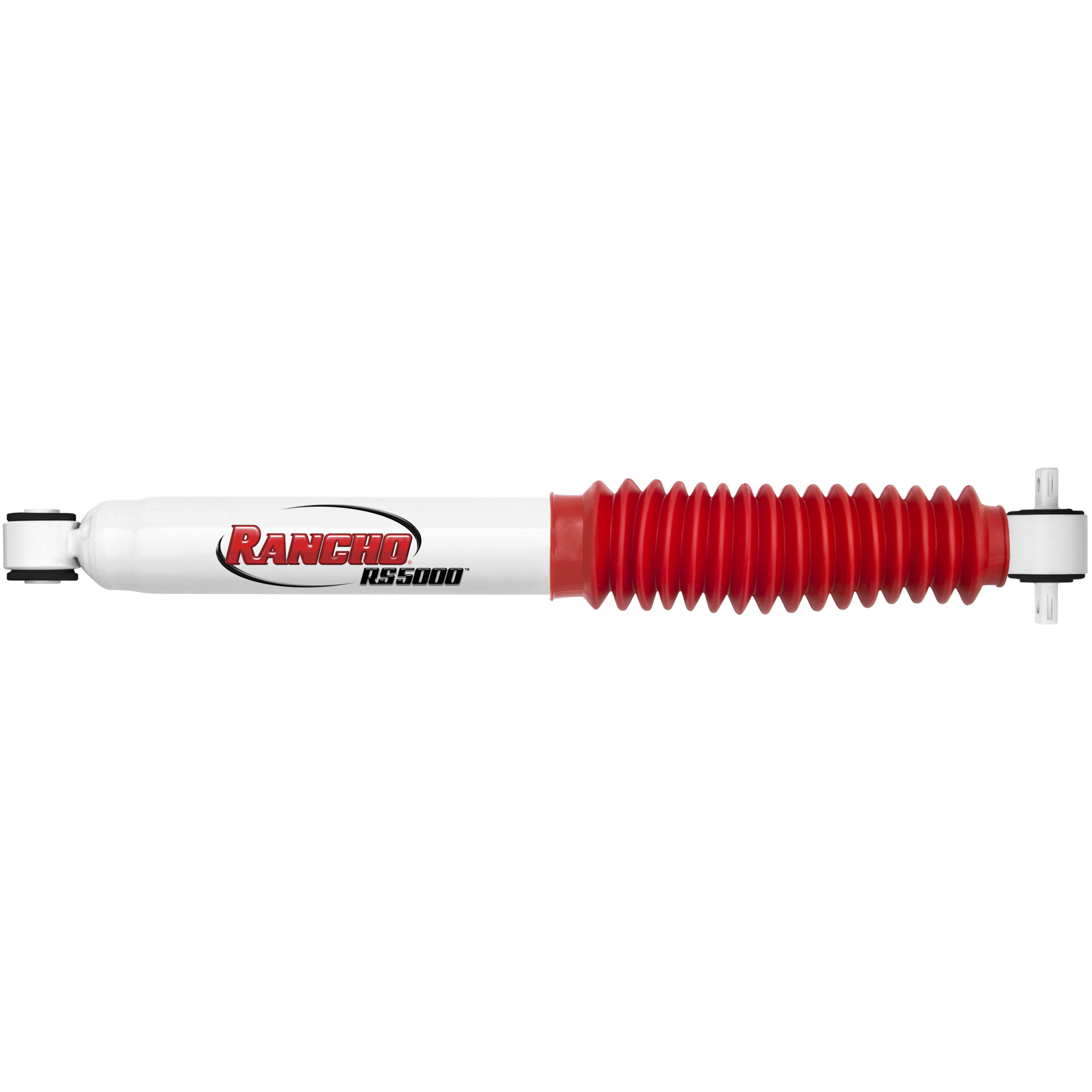

Rancho Rs5301 Rs5000 Series Shock
Products specifications
Adjustable No
Boot Color Red
Boot Included Yes
Bushing Color Red
Bushing Material Polyurethane
Collapsed Length (in) 14.750 in.
Extended Length (in) 23.000 in.
Gas Charged Yes
Internal Design Twin-tube
Lower Mount Eyelet
Notes For use with torsion bar front suspension and Off-Road package.
Quantity Sold individually.
Upper Mount Bar pin
Compressed Bumper Stop No
Extended Bumper Stop No
Extended Hydraulic Lockout No
Reserve Tube Diameter 2.180"
Compressed Length 14.850"
Extended Length 23.000"
Feature Point 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Feature Point 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability
Feature Point Limited Lifetime Warranty - Guarantees your investment
Feature Point Protective boot included - Protects the shock rod and oil seal
Feature Point Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
Dust Shield Yes
Lower Mounting Code Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Parts Pack(s) None
Travel Length 8.150"
Upper Mounting Code Cross Pin Mount - Closed Ended, 3/8" Hole ID (Both Ends) X 2.3/4" Pin Length (Hole Center to Center)
Upper Mounting Code Cross Pin Mount - Closed Ended, 3/8" Hole ID X 2.3/4" Pin Length
RanchoRs5301Rs5000SeriesShock
Reviews
Add your review
J
very good prices. good service.I am a future customer.thanks.
R
I placed an order on Monday & received product on Saturday. I am very pleased with the turn around time & the price. They had the best price on the internet that I found and they were helpful to work with.
N
Timing gearset arrived in under 48 hrs! Gears look well made. Can't wait to get them on my car. Thanks for the great service!
B
Order shipped without delay and Autoplicity had the best price. One of the problems was I did not get order confirmation email or could not get the order details in my account. Unfortunately, I registered after placing the order because the process was not that straight forward. They could not get my order details into the account. The tracking email was received little late. I wish they improve the system to add orders to the account and display the order progress.
Show All Reviews
Fitment
Chevrolet Colorado
2012 Chevrolet Colorado ALL / LT / WT
2011 Chevrolet Colorado ALL / LT
2010 Chevrolet Colorado ALL / LT
2009 Chevrolet Colorado ALL / LT
2008 Chevrolet Colorado ALL / Base / LS / LT / WT
2007 Chevrolet Colorado ALL / Base / LS / LT / WT
2006 Chevrolet Colorado ALL / Base / LS / LT / Sport / Sport LS / WT / Z71 / Z71 LS / Z85 / Z85 LS
2005 Chevrolet Colorado ALL / Base / LS / LT / Sport / Sport LS / WT / Z71 / Z71 LS / Z85 / Z85 LS
2004 Chevrolet Colorado ALL / Base / LS / LT / Sport / Sport LS / WT / Z71 / Z71 LS / Z85 / Z85 LS
GMC Canyon
2012 GMC Canyon ALL / WT
2011 GMC Canyon ALL
2010 GMC Canyon ALL
2009 GMC Canyon ALL
2008 GMC Canyon ALL
2007 GMC Canyon ALL
2006 GMC Canyon ALL
2005 GMC Canyon ALL
2004 GMC Canyon ALL / Z71 Fleet / Z71 SL / Z71 SLE / Z85 SL / Z85 SLE
