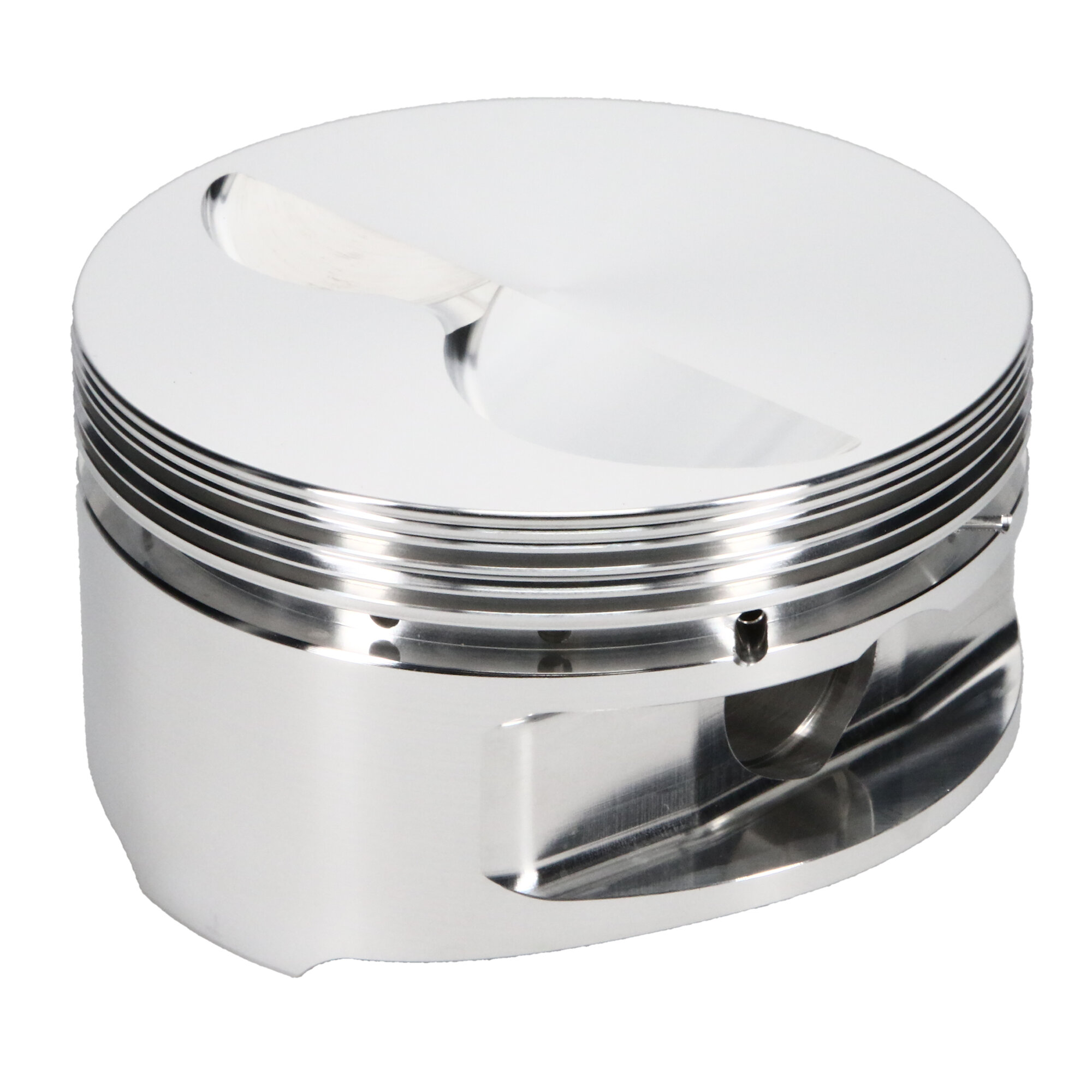

JE Pistons 194340 Piston Set, 2618, Flat Top, 4.165 Bore, 1.000 Cd, 0.927 Pin, Set Of 8.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons 257967 Piston Set, 2618, Flat Top, 4.560 Bore, 1.270 Cd, 0.990 Pin, Set Of 8.

Part Number

194340
10 reviews
12/03/2034 6:26 AM
Cyber Monday Price

$974.99

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

JE Pistons 194340 Piston Set, 2618, Flat Top, 4.165 Bore, 1.000 Cd, 0.927 Pin, Set Of 8.



THIS PRODUCT CONSISTS OF 8 PIECES.

JE Pistons
23deg Flat Top
Oil Rail Support is Included
Set of 8 Pistons
Recommended RingSet: J10008-4165-5

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Block Height

9

Bore

4.165

Bore (in)

4.165 in.

Bore (mm)

105.791mm

CID

436

Comp Height

1

Comp Ratio @ 58CC

13.3:1

Comp Ratio @ 64cc

12.4:1

Comp Ratio @ 76CC

10.9:1

Compression Distance (in)

1.000 in.

Dome Volume

-5

Gram Weight

411

Notes

Oil rail support included. 0.295 inch deep intake pocket.

Oversize

0.035

Pin Diameter (in)

0.927 in.

Piston Head Volume (cc)

+5.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Flat top, with two valve reliefs

Quantity

Sold individually.

Rod

6

Stroke

4

Wrist Pin Style

Press-fit or floating

Second Compression Ring Thickness

0.064

Piston Pin Wall Thickness

0.150

Add-On

927-042-CS

Piston Pin Outside Diameter

0.927

Bore Diameter

4.165

Piston Pin Length

2.750

Add-On

927-2750-15-51S

Product Market

Domestic

Piston Pin Material

5115

Cylinder Head

CHEVROLET 23 DEG 20/30

Forging Type

Round

Category Hierarchy

Pistons>Piston Kits

Engine

SMALL BLOCK CHEVROLET

Industry

Automotive

Out of Stock Message

Call for Availability

Add-On

J10008-4165-5

Top Compression Ring Thickness

0.064

Make

Chevrolet

Ringset Included

No

Piston Head Type

Flat

Piston Material

2618

Compression Height

1.000

Oil Ring Thickness

0.218

Piston Volume

-4.3

Piston Avg Wt

411
