$79.70
In Stock (20)
Usually delivered within 2 days

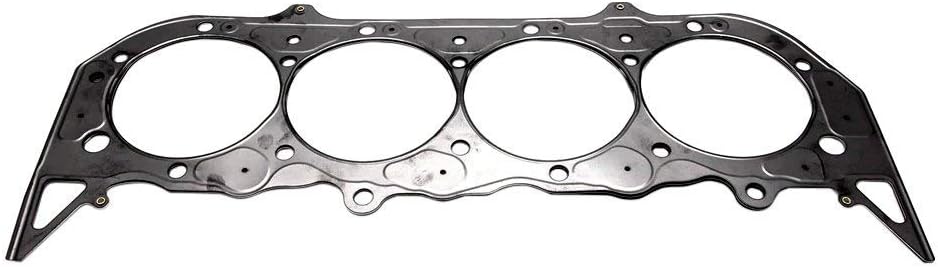

Part number: C5433-040
Product Details
Cometic C5433-040 in our Head Gaskets Deptartment
Products specifications
Bore 4.570in
Bore (in) 4.570 in.
Bore (mm) 116.080mm
Calculator Compression Calculator
Compressed Thickness (in) 0.040 in.
Compressed Volume (cc) 10.750cc
Gasket Material Multi-layer steel
Lock Wire No
Material MLS
Notes Use with Brodix Big Duke/Big Brodie. Chevy big block Mark IV and Brodix block.
Quantity Sold individually.
Thickness .040in
Bore Diameter 4.570"
Engine GM Gen II/ Mark IV Big Block V8
Cylinder Head Type Brodix Brodie Head
Head Gasket

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.

MLS
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.

The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

CFM-20
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.

COPPER

Reviews
Add your review
S
Found item i was looking for at a better price than any other website! Fast shipping and great custumer service. will be buying from them again. Thanks!
J
The site was easy to use and I'm currently awaiting my items.  So far the ease with shopping using autoplicity was what I expect of a web site - extremely easy and user friendly.  Way to go guys and keep up the great work!
X
Very fast transaction and shipping info.. Best price found on the internet..
M
Had the hard to find part I was looking for in stock. Ordered it late saturday night, first thing monday morning it was shipped out! Couldnt of asked for more!
Show All Reviews
Fitment
Chevrolet Bel Air
1975 Chevrolet Bel Air ALL / Base
1974 Chevrolet Bel Air ALL / Base
1973 Chevrolet Bel Air ALL / Base
1972 Chevrolet Bel Air ALL / Base
1971 Chevrolet Bel Air ALL / Base
1970 Chevrolet Bel Air ALL / Base
1969 Chevrolet Bel Air ALL / Base
1968 Chevrolet Bel Air ALL / Base
1967 Chevrolet Bel Air ALL / Base
1966 Chevrolet Bel Air ALL / Base
1965 Chevrolet Bel Air ALL / Base
Chevrolet Biscayne
1972 Chevrolet Biscayne ALL / Base
1971 Chevrolet Biscayne ALL / Base
1970 Chevrolet Biscayne ALL / Base
1969 Chevrolet Biscayne ALL / Base
1968 Chevrolet Biscayne ALL / Base
1967 Chevrolet Biscayne ALL / Base
1966 Chevrolet Biscayne ALL / Base
1965 Chevrolet Biscayne ALL / Base
Chevrolet Blazer
1974 Chevrolet Blazer ALL / Base
1973 Chevrolet Blazer ALL / Base
Chevrolet Brookwood
1972 Chevrolet Brookwood ALL / Base
1971 Chevrolet Brookwood ALL / Base
1970 Chevrolet Brookwood ALL / Base
1969 Chevrolet Brookwood ALL / Base
Chevrolet C10
1980 Chevrolet C10 ALL
1979 Chevrolet C10 ALL
1978 Chevrolet C10 ALL
1977 Chevrolet C10 ALL
1976 Chevrolet C10 ALL / Cheyenne / Custom Deluxe / Scottsdale / Silverado
1975 Chevrolet C10 ALL / Cheyenne / Custom Deluxe / Scottsdale / Silverado
Chevrolet C10 Pickup
1974 Chevrolet C10 Pickup ALL / Base
1973 Chevrolet C10 Pickup ALL / Base
1972 Chevrolet C10 Pickup ALL / Base
1971 Chevrolet C10 Pickup ALL / Base
1970 Chevrolet C10 Pickup ALL / Base
1969 Chevrolet C10 Pickup ALL / Base
1968 Chevrolet C10 Pickup ALL / Base
Chevrolet C10 Suburban
1980 Chevrolet C10 Suburban ALL
1979 Chevrolet C10 Suburban ALL
1978 Chevrolet C10 Suburban ALL
1977 Chevrolet C10 Suburban ALL
1976 Chevrolet C10 Suburban ALL / Custom Deluxe / Scottsdale / Silverado
1975 Chevrolet C10 Suburban ALL / Custom Deluxe / Scottsdale / Silverado
1974 Chevrolet C10 Suburban ALL / Base
1973 Chevrolet C10 Suburban ALL / Base
1972 Chevrolet C10 Suburban ALL / Base
1971 Chevrolet C10 Suburban ALL / Base
1970 Chevrolet C10 Suburban ALL / Base
1969 Chevrolet C10 Suburban ALL / Base
1968 Chevrolet C10 Suburban ALL / Base
