$23.61
Out of Stock
Part number: W536NP30
Product Details

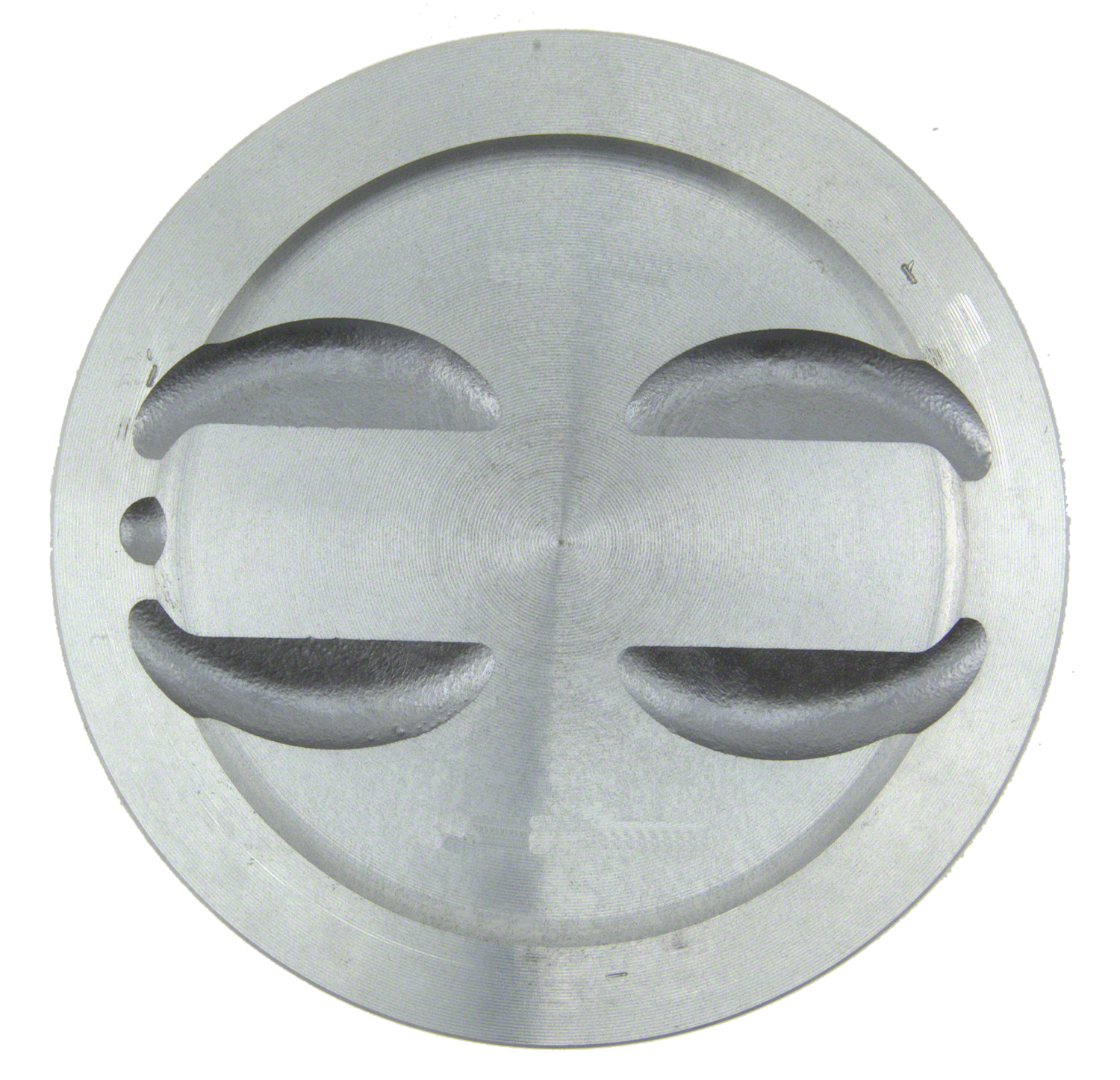

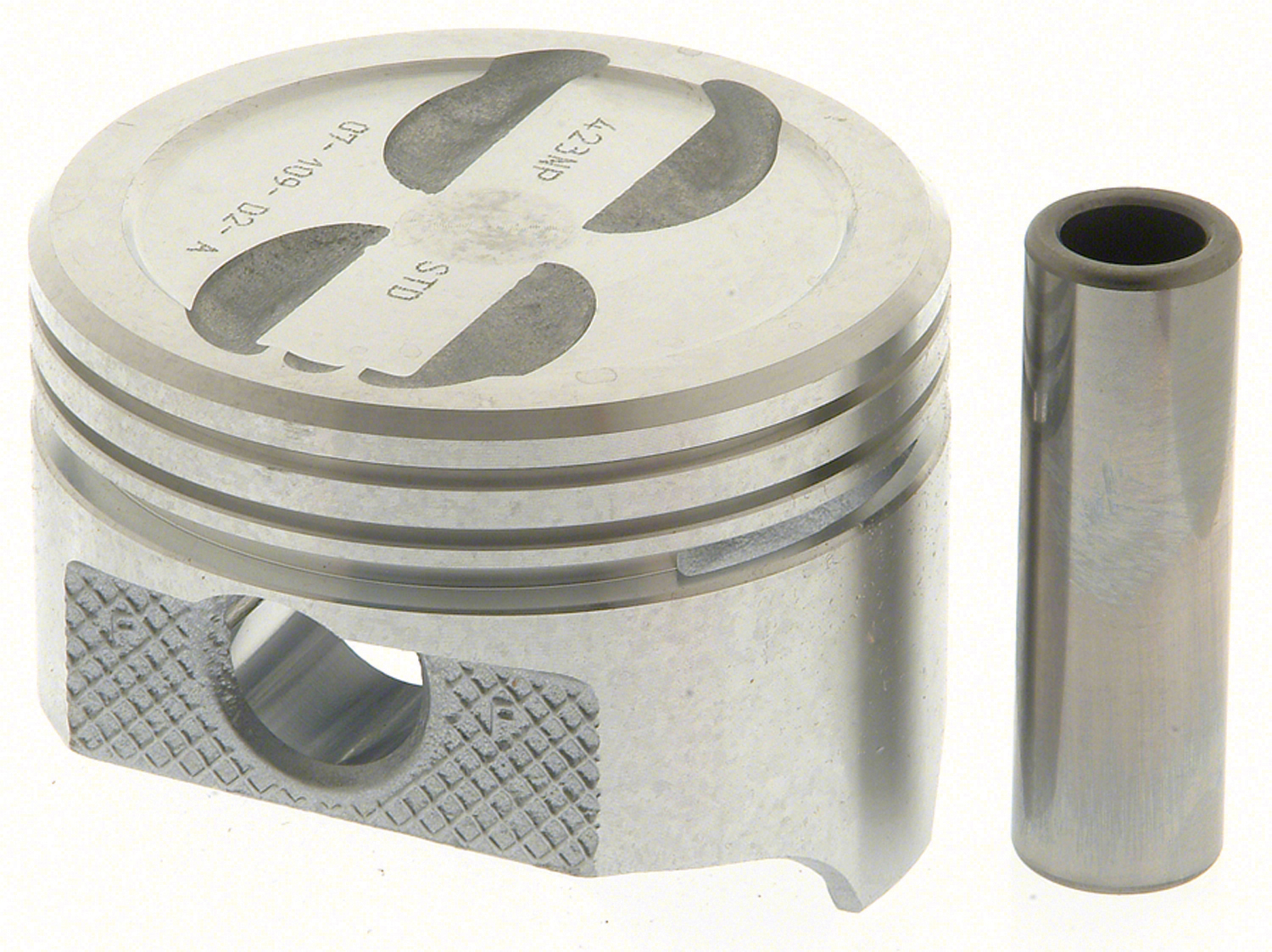

Sealed Power W536NP30 Cast Piston - Individual
Products specifications
Agricultural Equipment N
Application Specific Y
Bore (Inch) 3.7360
Bore (mm) 94.9000
Car Light Truck Y
CMPRS DSTNC 1.540
Compression Distance 1.540
DOME VOL CC 000.0
Engine Specific Y
Feature 1 Cast
Feature or Benefit 1 Cast
Freight Class 60
Head Illustration 29
HEAD ILUS 29
Head Type Recessed Head .062 deep x 3.130 dia.
Heavy Duty Truck N
High Performance N
Industrial Off Highway Equipment N
Marine N
Medium Duty Truck N
MIN CLRNC .001 @ 1.800 from top of head
Minimum Clearance .001 @ 1.800 from top of head
Motorcycle ATV N
Non Vehicle Specific N
Note 1 Oversize Inch .030
Note 2 Single Piston
Oversize Inch .030
Package Alert Single Piston
Part Material Cast
Personal WaterCraft N
PIN DIA (Inch) 0.9275
PIN DIA (MM) 23.559
Pin Diameter (Inch) 0.9275
Pin Diameter (Inch) .9275
Pin Diameter (MM) 23.56
Pin Diameter (MM) 23.559
PIN OFFSET (Inch) 0.06
PIN OFFSET (Inch) .060
Pin Offset (MM) 1.524
Ring 1 Qty 2
RING 1 WID 5/64
Ring 1 Width 5/64
RING 2 QTY 1
RING 2 WID 3/16
Ring 2 Width 3/16
Small Engine N
SnowMobile N
Transmission Specific N
WGT W PIN GRAM 00000.+/- 00.
Note 1 Oversize Inch .030
Feature 1 Cast, use w/WE-356K or WE-356X ring set
Feature 2 Performance amp; dependability of O.E. pistons
Feature 3 High quality aluminum
What is in the box SEALED POWER Piston, pin and lock rings (if required)
Feature 2 Performance dependability of O.E. pistons
Feature 4 Utilizes ISO & QS certified manufacturing
Sealed Power Cast Piston - Individual
Reviews
Add your review
A
My order #4383 was fulfilled quickly and shipped in a timely fashion. The price was super competative and the web site is user friendly. I will be back for more I'm sure! Shipping should be free for orders over a certain price, say $50?!?!
A
Great price and received item in a timely and in great condition.  Will definitely shop here again!
D
great prices
C
Autoplicity made finding and ordering my parts simple and easy! Not only did they have the parts in stock and ready to ship, but they were also the cheapest BY FAR saving me nearly 30%!

The information that they had on the product pages was 100% accurate unlike other car part websites.

Autoplicity has made a customer for life!
Show All Reviews
Fitment
Buick Commercial Chassis
1991 Buick Commercial Chassis ALL
Buick Regal
1987 Buick Regal ALL
Buick Roadmaster
1991 Buick Roadmaster ALL
Cadillac Brougham
1992 Cadillac Brougham ALL
1991 Cadillac Brougham ALL
Chevrolet Blazer
1987 Chevrolet Blazer ALL
Chevrolet C1500
1995 Chevrolet C1500 ALL
1994 Chevrolet C1500 ALL
1993 Chevrolet C1500 ALL
1992 Chevrolet C1500 ALL
1991 Chevrolet C1500 ALL
1990 Chevrolet C1500 ALL
1989 Chevrolet C1500 ALL
1988 Chevrolet C1500 ALL
Chevrolet C2500
1995 Chevrolet C2500 ALL
1994 Chevrolet C2500 ALL
1993 Chevrolet C2500 ALL
1992 Chevrolet C2500 ALL
1991 Chevrolet C2500 ALL
1990 Chevrolet C2500 ALL
1989 Chevrolet C2500 ALL
1988 Chevrolet C2500 ALL
Show All Vehicle Fitments
